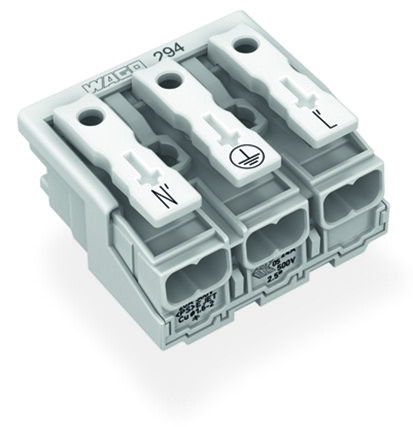

WAGO 294-5023
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Lighting connector; push-button, external; without ground contact; 3-pole; Lighting side: for solid conductors; Inst. side: for all conductor types; max. 2.5 mm²; Surrounding air temperature: max 85°C (T85); 2,50 mm²; white
WAGO 294-5023 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CH
- Customs tariff number
- 85369010000
- GTIN
- 4050821098195
- Packaging type
- Foil
Connection 1
- Actuation type
- Push-button
- Connectable conductor materials
- Copper
- Connection technology
- Push-in CAGE CLAMP®
- Connection type 1
- External 1
- Fine-stranded conductor
- 0.5 … 2.5 mm² / 18 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination
- 0.5 mm² / 18 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.5 … 1.5 mm² / 18 … 16 AWG
- Fine-stranded conductor; with uninsulated ferrule
- 0.5 … 1.5 mm² / 18 … 16 AWG
- Number of connection points
- 2
- Pole number
- 3
- Solid conductor
- 0.5 … 2.5 mm² / 18 … 12 AWG
- Solid conductor; push-in termination
- 0.5 … 2.5 mm² / 18 … 12 AWG
- Stranded conductor
- 0.5 … 2.5 mm² / 18 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- Wiring direction
- Side-entry wiring
Connection 2
- Actuation type 2
- Push-in
- Connection technology 2
- PUSH WIRE®
- Connection type 2
- Internal 2
- Fine-stranded conductor; with insulated ferrule 2
- 0.5 … 1 mm² / 18 … 16 AWG
- Fine-stranded conductor; with uninsulated ferrule 2
- 0.5 … 1.5 mm² / 18 … 14 AWG
- Number of connection points 2
- 1
- Solid conductor 2
- 0.5 … 2.5 mm² / 18 … 14 AWG
- Strip length 2
- 8 … 9 mm / 0.31 … 0.35 inches
Connection 3
- Actuation type 3
- Push-in
- Connection technology 3
- PUSH WIRE®
- Connection type 3
- Internal 3
- Fine-stranded conductor; with insulated ferrule 3
- 0.5 … 0.75 mm² / 18 AWG
- Fine-stranded conductor; with uninsulated ferrule 3
- 0.5 … 1 mm² / 18 AWG
- Number of connection points 3
- 1
- Solid conductor 3
- 0.5 … 1.5 mm² / 18 … 16 AWG
- Strip length 3
- 8 … 9 mm / 0.31 … 0.35 inches
Connection 4
- Actuation type 4
- Push-in
- Connection technology 4
- PUSH WIRE®
- Connection type 4
- Internal 4
- Number of connection points 4
- 1
- Solid conductor 4
- 0.5 … 0.75 mm² / 18 AWG
- Strip length 4
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Temperature stability
- 120 °C
- T marking
- T85
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- White
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.183 MJ
- Flammability class per UL94
- V0
- Halogen-free
- Yes
- Insulation material
- Polycarbonate (PC)
- Material group
- IIIa
- Note (material data)
- Weight
- 9.201 g
Mechanical Data
- Marking
- N´-⏚-L´
- Mounting type
- Snap-in foot
Physical Data
- Depth
- 27.3 mm / 1.075 inches
- Height
- 21.53 mm / 0.848 inches
- Height from the surface
- 17 mm / 0.669 inches
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 30 mm / 1.181 inches
Ratings Per Iec/En
- Legend (ratings)
- (II / 2) ≙ Overvoltage category II / Pollution degree 2
- Nominal voltage (II/2)
- 500 V
- Rated current
- 24 A
- Rated surge voltage (II/2)
- 4 kV
- Ratings (note)
- Connection points
- Ratings per
- IEC/EN 60998-1
Ratings Per Iec/En 2
- Rated current 2
- 24 A
- Rated surge voltage (II/2) 2
- 4 kV
- Rated voltage (II/2) 2
- 500 V
- Ratings (note) 2
- Connection points
- Ratings per 2
- IEC/EN 60998-2-2
Specifications
- Product Group Code
- 0008
