WAGO 289-966
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

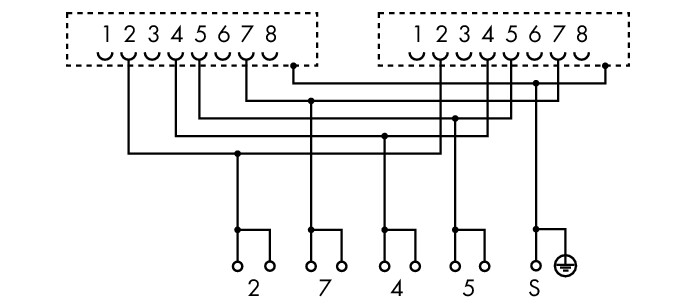

Interface module; 2xRJ-45; PCB terminal blocks, double-row; in mounting carrier; with shield connection
WAGO 289-966 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85366990990
- GTIN
- 4050821001218
- Packaging type
- Box
Connection 1
- Connection type
- RJ-45
- Connection type 1
- System
- Connector
- 2 x RJ-45 (shielded)
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number 1
- 8
Connection 2
- Connection technology 2
- CAGE CLAMP®
- Connection type 2
- Clamping units 2, 7
- Design 2
- PCB terminal blocks
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 8
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 2
- WAGO 236 Series
Connection 3
- Connection technology 3
- CAGE CLAMP®
- Connection type 3
- Clamping units 4, 5
- Design 3
- PCB terminal blocks
- Fine-stranded conductor 3
- 0.2 … 6 mm² / 24 … 10 AWG
- Pole number 3
- 4
- Solid conductor 3
- 0.2 … 6 mm² / 24 … 10 AWG
- Strip length 3
- 11 … 12 mm / 0.43 … 0.47 inches
- WAGO connector 3
- WAGO 745 Series
Electrical Data
- Insulation resistance
- ≥ 500 MΩ
- Nominal current
- 1.5 A
- Specialty functions
- With shield connection || With shield clamping saddle
Environmental Requirements
- Ambient temperature (operation)
- -20 … +85 °C
Material Data
- Fire load
- 1.066 MJ
- Weight
- 106.900 g
Mechanical Data
- Housing design
- Mounting carrier
- Mating cycles
- 500
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 40 mm / 1.575 inches
- Height
- 85 mm / 3.346 inches
- Width
- 69 mm / 2.717 inches
Safety And Protection
- Dielectric strength (contact/contact) (AC, 1 min)
- 0.5 kVrms
Specifications
- Product Group Code
- 0006
