WAGO 289-728
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

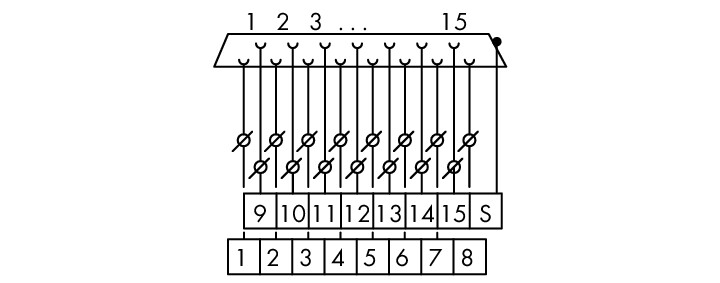

Interface module; with solder pin; Female connector; 37-pole; Double-deck PCB terminal blocks; in mounting carrier; Mating connector for solder connection; 2,50 mm²
WAGO 289-728 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4045454609801
- Packaging type
- Box
Connection 1
- Connection type
- Female connector; D-sub/HD D-sub
- Connection type 1
- System
- Connector
- D-subminiature female connector
- For mating connector
- With solder contact
- Mating direction
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number 1
- 37
Connection 2
- Connection technology 2
- CAGE CLAMP®
- Connection type 2
- Field
- Design 2
- PCB terminal blocks (double-deck)
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 38
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 2
- WAGO 736 Series
Electrical Data
- Contact resistance (max.)
- 30 mΩ
- Nominal current
- 2 A
- Operating voltage
- ≤30 VAC; ≤50 VDC
- Specialty functions
- With solder pin || With shield connection
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- ≤ 85% (non-condensing)
Material Data
- Contact material (connector)
- Au over Ni
- Fire load
- 1.389 MJ
- Weight
- 130.028 g
Mechanical Data
- Housing design
- Mounting carrier
- Mounting type
- DIN-35 rail
Notes
- Note
- One solder terminal per pole is available for testing and patching (except for shield contact).
Physical Data
- Depth from upper-edge of DIN-rail
- 48 mm / 1.89 inches
- Height
- 85 mm / 3.346 inches
- Width
- 99.5 mm / 3.917 inches
Safety And Protection
- Dielectric strength (channel/channel) (AC, 1 min.)
- 1.3 kVrms
- Insulation type
- Functional insulation
- Pollution degree
- 2
- Protection type
- IP00; Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.
- Rated voltage
- 50 V
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61010-2-201
