WAGO 289-531
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

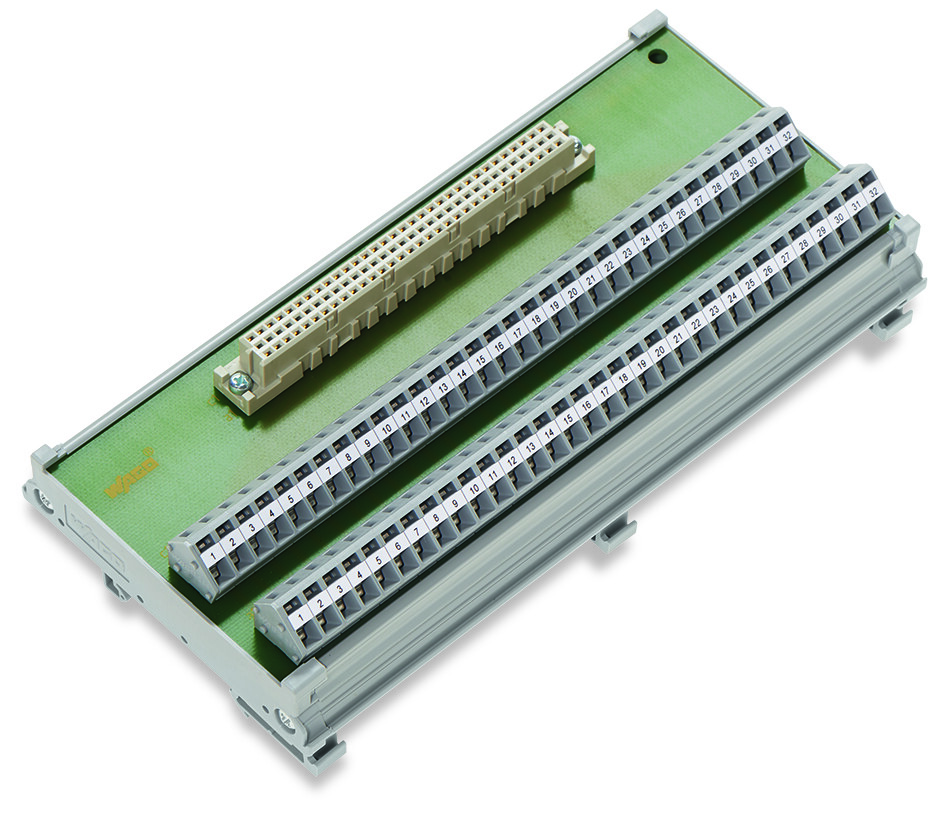

Interface module; Pluggable connector per DIN 41612; 64-pole; Mating connector for solder connection; Vertical mounting; PCB terminal blocks, double-row; in mounting carrier; Type C; 2,50 mm²
WAGO 289-531 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4045454547301
- Packaging type
- Box
Connection 1
- Connection type
- Pluggable Connector per DIN 41612
- Connection type 1
- System
- Connector
- Pluggable connector per DIN 41612; Type C; Female connector
- For mating connector
- With solder contact
- Mating direction
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number 1
- 64
Connection 2
- Connection technology 2
- CAGE CLAMP®
- Connection type 2
- Field
- Design 2
- PCB terminal blocks (double-row)
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 64
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 2
- WAGO 236 Series
Electrical Data
- Contact resistance (max.)
- 20 mΩ
- Nominal current
- 1 A
- Operating voltage
- ≤100 VAC; ≤125 VDC
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 85% (non-condensing)
Material Data
- Contact material (connector)
- Copper alloy; gold plated
- Fire load
- 2.098 MJ
- Weight
- 164.400 g
Mechanical Data
- Housing design
- Mounting carrier
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 34 mm / 1.339 inches
- Height
- 85 mm / 3.346 inches
- Width
- 171 mm / 6.732 inches
Safety And Protection
- Pollution degree
- 2
- Protection type
- IP20
- Rated surge voltage
- 0.8 kV
- Rated voltage
- 100 V
Specifications
- Product Group Code
- 0006
