Description

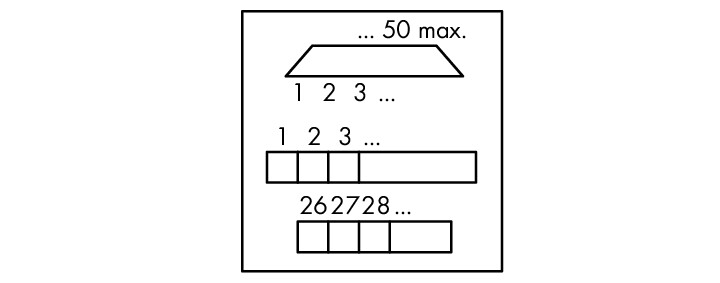

Interface module; with solder pin; Female connector; 9-pole; Mating connector with solder connection; Vertical mounting; PCB terminal blocks, double-row; with mounting feet; 2,50 mm²
WAGO 289-455 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85366990990
- GTIN
- 4045454371159
- Packaging type
- Box
Connection 1
- Connection type
- Female connector; D-sub/HD D-sub
- Connection type 1
- System
- Connector
- D-subminiature female connector
- For mating connector
- With solder contact
- Mating direction
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number 1
- 9
Connection 2
- Connection technology 2
- CAGE CLAMP®
- Connection type 2
- Field
- Design 2
- PCB terminal blocks (double-row)
- Fine-stranded conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Pole number 2
- 9
- Solid conductor 2
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length 2
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector 2
- WAGO 236 Series
Electrical Data
- Contact resistance (max.)
- 30 mΩ
- Nominal current
- 1 A
- Operating voltage
- ≤30 VAC; ≤50 VDC
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- ≤ 85% (non-condensing)
Material Data
- Contact material (connector)
- Au over Ni
- Fire load
- 0.054 MJ
- Weight
- 25.264 g
Mechanical Data
- Housing design
- PCB with mounting feet
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 19 mm / 0.748 inches
- Height
- 63.5 mm / 2.5 inches
- Width
- 38 mm / 1.496 inches
Safety And Protection
- Insulation type
- Basic insulation
- Pollution degree
- 2
- Protection type
- IP00; Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.
- Rated surge voltage
- 0.8 kV
- Rated voltage
- 50 V
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61010-2-201
