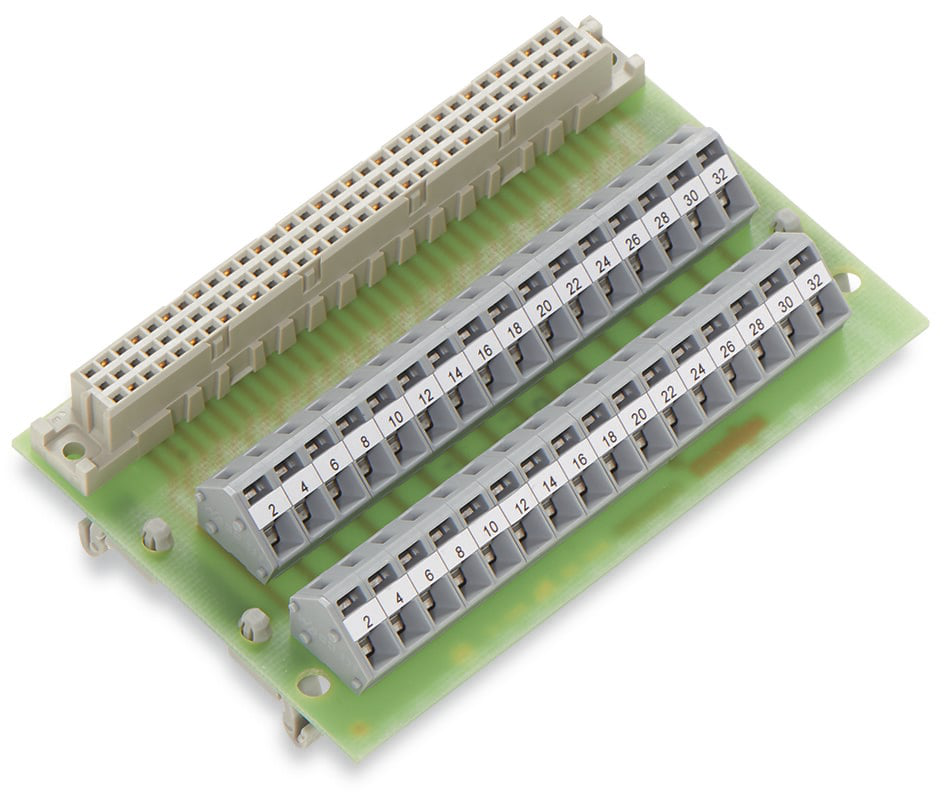

WAGO 289-430

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• GTIN
  • 4055143106658
• Packaging type
  • Box

Connection 1

• Connection type
  • Pluggable Connector per DIN 41612
• Connection type 1
  • System
• Connector
  • Pluggable connector per DIN 41612; Type C; Female connector
• For mating connector
  • With solder contact
• Mating direction
  • Vertical
• Note (conductor cross-section)
  • 12 AWG: THHN, THWN
• Pole number 1
  • 32

Connection 2

• Connection technology 2
  • CAGE CLAMP®
• Connection type 2
  • Field
• Design 2
  • PCB terminal blocks (double-row)
• Fine-stranded conductor 2
  • 0.08 … 2.5 mm² / 28 … 12 AWG
• Pole number 2
  • 32
• Solid conductor 2
  • 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2
  • 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector 2
  • WAGO 236 Series

Electrical Data

• Contact resistance (max.)
  • 20 mΩ
• Nominal current
  • 1 A
• Operating voltage
  • ≤30 VAC; ≤50 VDC

Environmental Requirements

• Ambient temperature (operation)
  • -20 … +50 °C
• Ambient temperature (storage)
  • -40 … +70 °C
• Relative humidity
  • ≤ 85% (non-condensing)

Material Data

• Contact material (connector)
  • Copper alloy; gold plated
• Fire load
  • 0.054 MJ
• Weight
  • 61.500 g

Mechanical Data

• Housing design
  • PCB with mounting feet
• Mounting type
  • DIN-35 rail

Physical Data

• Depth from upper-edge of DIN-rail
  • 21 mm / 0.827 inches
• Height
  • 63.5 mm / 2.5 inches
• Width
  • 97 mm / 3.819 inches

Safety And Protection

• Pollution degree
  • 2
• Protection type
  • IP00; Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.
• Rated surge voltage
  • 0.8 kV
• Rated voltage
  • 50 V

Specifications

• Product Group Code
  • 0006
