Description

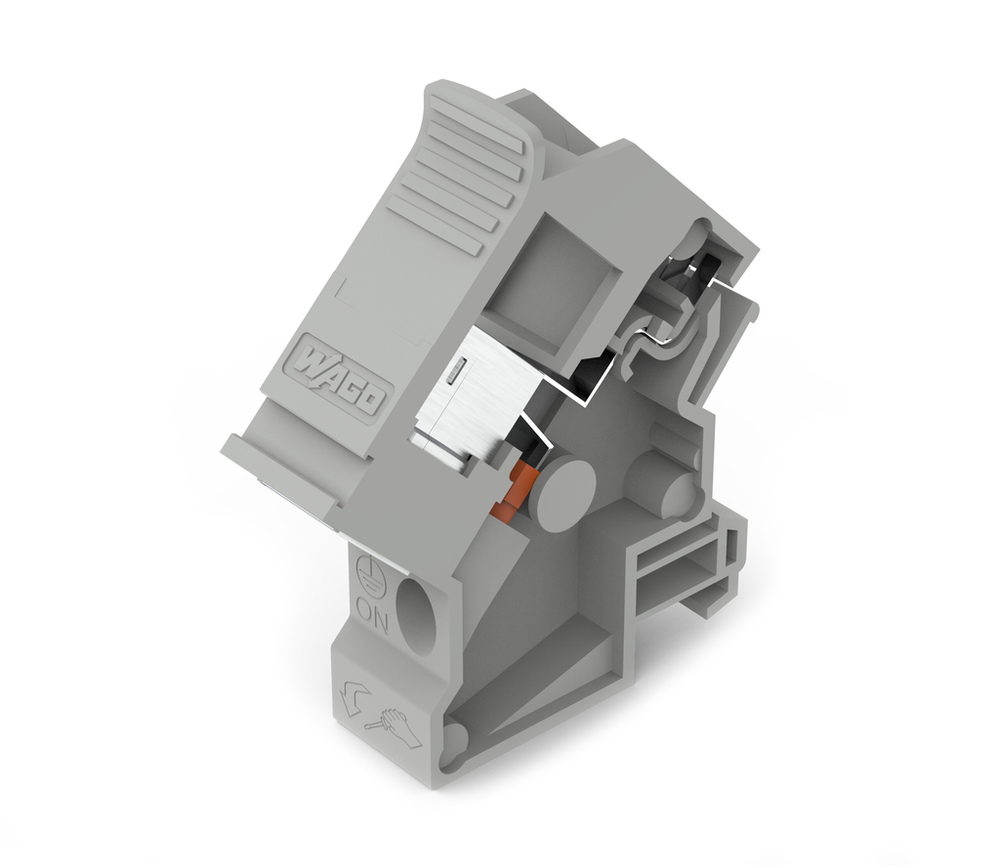

Interface module; RJ-45; IDC technology; Cat. 6A; in mounting carrier; with shield connection
WAGO 289-197 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- PL
- Customs tariff number
- 85366990990
- GTIN
- 4066966083484
- Packaging type
- Bag
Connection 1
- Connection type
- RJ-45
- Connection type 1
- System
- Connector
- RJ-45 (shielded)
- Pole number 1
- 8
Connection 2
- Connection technology 2
- IDC connection
- Connection type 2
- System
- Pole number 2
- 8
- Solid conductor 2
- 0.4 … 0.65 mm² / 26 … 22 AWG
- Stranded conductor 2
- 0.4 … 0.65 mm² / 26/7 … 22/7 AWG
- Strip length 2
- 4.5 … 9.6 mm / 0.18 … 0.38 inches
Electrical Data
- Contact resistance (max.)
- 5 mΩ
- Specialty functions
- With shield connection
Environmental Requirements
- Ambient temperature (operation)
- -10 … +60 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Relative humidity
- ≤ 95% (non-condensing)
Material Data
- Contact material (connector)
- CuSn
- Contact plating (connector)
- Au over Ni
- Fire load
- 0.000 MJ
- Material (DIN-rail adapter)
- PC-GF10
- Material (plug-in module)
- Zinc die casting
- Weight
- 39.000 g
Mechanical Data
- Housing design
- Mounting carrier
- Mating cycles
- 750
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 59 mm / 2.323 inches
- Height
- 90 mm / 3.543 inches
- Width
- 18 mm / 0.709 inches
Safety And Protection
- Protection type
- IP20
Specifications
- Product Group Code
- 0006
