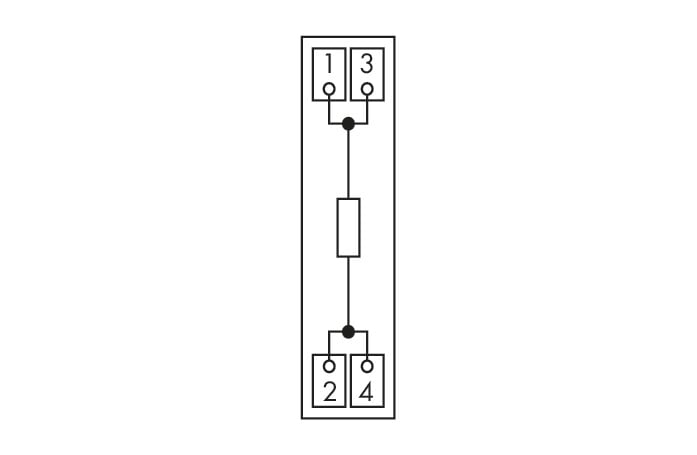

WAGO 289-128

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• GTIN
  • 4044918147620
• Packaging type
  • Box

Connection Data

• Connection technology
  • CAGE CLAMP®
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 12 AWG
• Note (conductor cross-section)
  • 12 AWG: THHN, THWN
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length
  • 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector
  • WAGO 236 Series

Electrical Data

• Component rated dissipation (P70)
  • 5 W
• Resistance
  • 9K1
• Temperature coefficient
  • 50 ppm (20 °C)
• Tolerance
  • ±10 %

Environmental Requirements

• Ambient temperature (operation)
  • -20 … +70 °C (Derating must be observed)
• Ambient temperature (storage)
  • -40 … +70 °C

Material Data

• Color
  • Gray
• Fire load
  • 0.515 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Weight
  • 19.117 g

Mechanical Data

• Housing design
  • Mounting carrier
• Mounting type
  • DIN-35 rail

Notes

• Note
  • Other resistors are available upon request!
• Safety information
  • Depending on operating conditions, the components' temperature may exceed the limit temperature for accessible parts.

Physical Data

• Depth from upper-edge of DIN-rail
  • 34 mm / 1.339 inches
• Height
  • 85 mm / 3.346 inches
• Width
  • 13 mm / 0.512 inches

Safety And Protection

• Protection type
  • IP00; Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.

Specifications

• Product Group Code
  • 0006
