WAGO 289-114
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

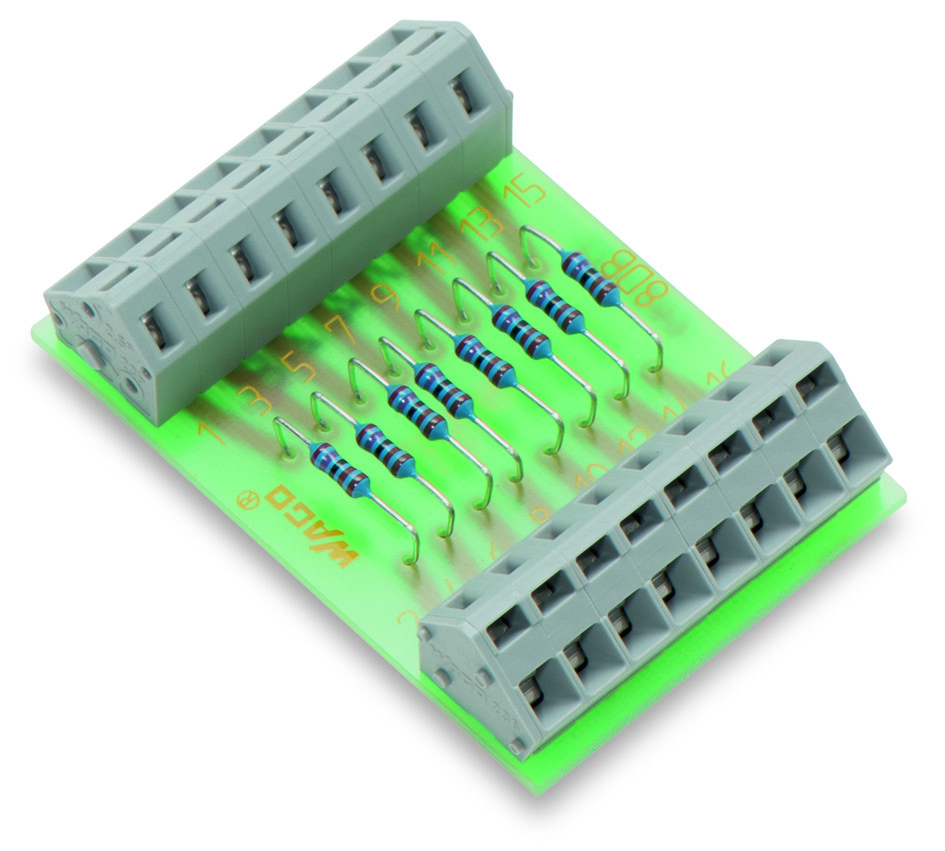

Component module with resistor; with 8 pcs; Resistor 2K7; 0.6 Watt; 2,50 mm²
WAGO 289-114 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4045454192938
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector
- WAGO 236 Series
Electrical Data
- Component rated dissipation (P70)
- 0.6 W
- Operating voltage
- ≤ AC/DC 40 V
- Resistance
- 2K7
- Resistor type/design
- DIN 0207
- Temperature coefficient
- 50 ppm (20 °C)
- Tolerance
- ±1%
Environmental Requirements
- Ambient temperature (operation)
- -25 … +40 °C
Material Data
- Fire load
- 0.802 MJ
- Weight
- 23.380 g
Mechanical Data
- Housing design
- PCB
- Mounting type
- Mounting on DIN-rail via DIN-rail adapter
Notes
- Note
- Max. admissible capacity of a single resistor – with all resistors loaded, the max. admissible power dissipation must be reduced.Other resistors are available upon request!
Physical Data
- Depth
- 65.5 mm / 2.579 inches
- Height from the surface
- 31.5 mm / 1.24 inches
- Width
- 47 mm / 1.85 inches
Specifications
- Product Group Code
- 0006
