WAGO 289-103
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

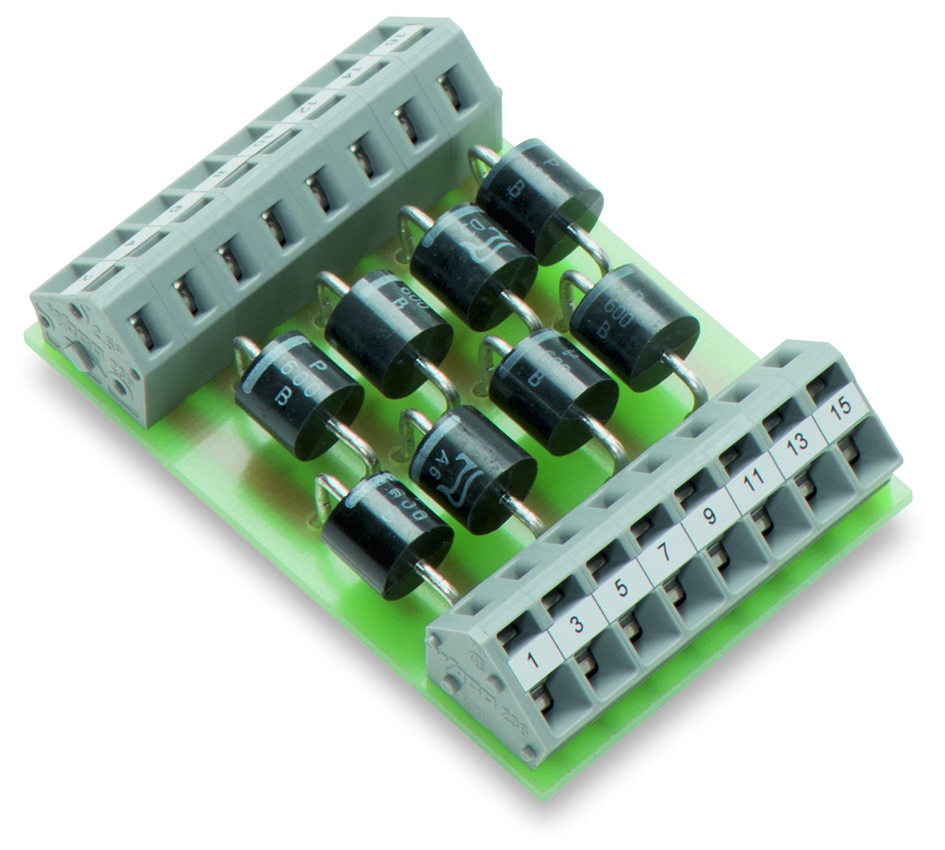

Component module with diode; with 8 pcs; Diode P600B; 2,50 mm²
WAGO 289-103 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4045454569372
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
- WAGO connector
- WAGO 236 Series
Electrical Data
- Forward current per diode (resistive)
- 6 A
- Forward voltage per diode
- 1 V
- Leakage current
- 5 µA
- Operating voltage
- ≤ AC/DC 100 V
- Peak reverse voltage
- 100 V
Environmental Requirements
- Ambient temperature (operation)
- -25 … +40 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- ≤ 95% (non-condensing)
Material Data
- Fire load
- 0.000 MJ
- Weight
- 18.954 g
Mechanical Data
- Housing design
- PCB
- Mounting type
- Mounting on DIN-rail via DIN-rail adapter
Notes
- Note
- Max. admissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A.
Physical Data
- Depth
- 65.5 mm / 2.579 inches
- Height from the surface
- 31.5 mm / 1.24 inches
- Height from upper-edge of DIN-rail
- 82.5 mm / 3.25 inches
- Note (dimensions)
- Height from upper-edge of DIN-rail with mounting carrier
- Width
- 47 mm / 1.85 inches
Safety And Protection
- Dielectric strength (channel/channel) (AC, 1 min.)
- 2.7 kVrms
- Insulation type
- Reinforced insulation (safe isolation)
- Overvoltage category
- II
- Pollution degree
- 2
- Protection type
- IP00; Notice! Live parts can be easily touched! Protection against direct contact must be provided by the equipment manufacturer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be observed for each individual application.
- Rated voltage
- 150 V
Specifications
- Product Group Code
- 0006
Standards And Specifications
- Standards/specifications
- EN 61010-2-201
