WAGO 288-825
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

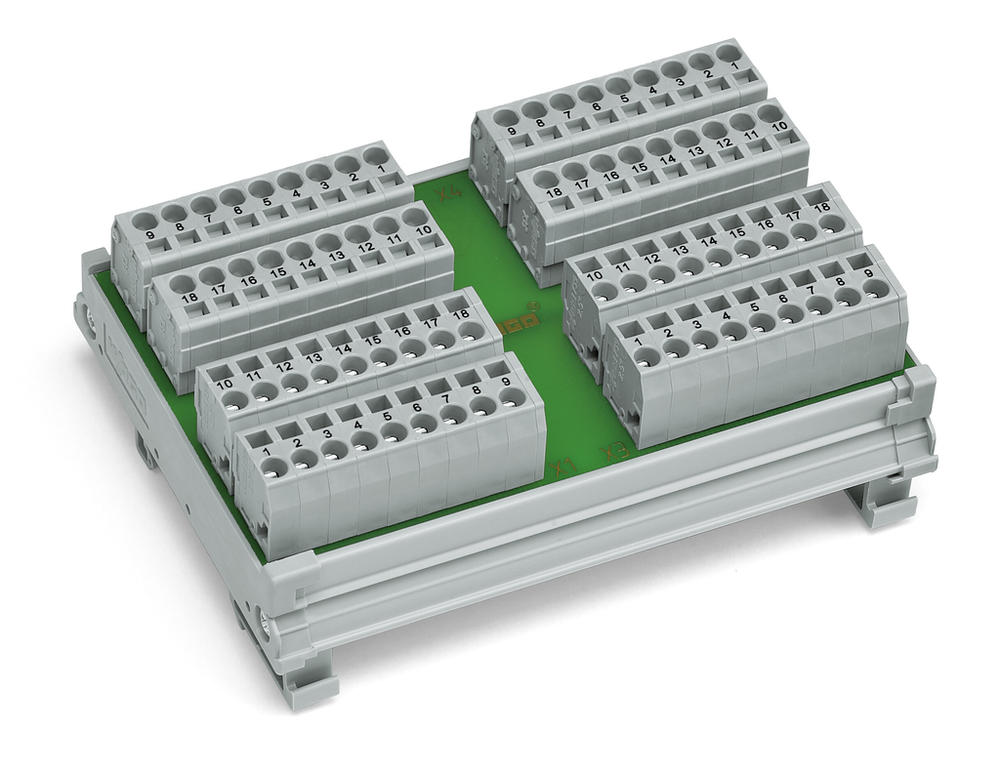

Potential distribution module; 4 potentials; with 18 connection points each
WAGO 288-825 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4045454423476
- Packaging type
- Box
Connection Data
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Mating direction
- Vertical
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- Total number of potentials
- 4
- WAGO connector
- WAGO 739 Series
Electrical Data
- Current per connection (max.)
- 12 A
- Operating voltage
- ≤ AC/DC 250 V
- Total current per potential (max.)
- 12 A
Environmental Requirements
- Ambient temperature (operation)
- -20 … +50 °C
- Ambient temperature (storage)
- -40 … +80 °C
Material Data
- Fire load
- 1.477 MJ
- Weight
- 156.600 g
Mechanical Data
- Housing design
- Mounting carrier
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 39 mm / 1.535 inches
- Height
- 85 mm / 3.346 inches
- Width
- 115 mm / 4.528 inches
Safety And Protection
- Pollution degree
- 2
- Rated surge voltage
- 4 kV
- Rated voltage
- 250 V
Specifications
- Product Group Code
- 0006
