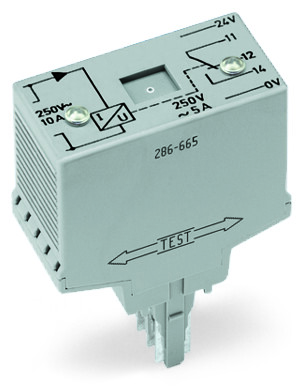

WAGO 286-665
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Current flow monitoring module; AC currents; Monitoring range: 1 A – 10 A; 1 changeover contact; light gray
WAGO 286-665 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85364900990
- GTIN
- 4050821254850
- Packaging type
- Box
Electrical Data
- Current consumption at nominal supply voltage
- ≤ 28 mA
- Limiting continuous current
- 5 A
- Measurement span (max.)
- 1 … 10 AAC
- Nominal operating voltage
- DC 24 V
- Number of break/switch-off contacts
- 1
- Number of changeover/switchover contacts
- 1
- Response time
- 200 ms
- Status indicator
- Red LED; Energized relay (current < switching threshold)
- Switching power (resistive) max.
- AC 1250 VA
- Switching threshold (adjustable) min.
- 1 A
- Switching voltage (max.)
- AC 250 V
- Voltage drop
- 23 … 850 mV
Environmental Requirements
- Ambient temperature (operation)
- -25 … +40 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 85 % (no condensation permissible)
Material Data
- Color
- Light gray
- Fire load
- 9.712 MJ
- Weight
- 58.000 g
Mechanical Data
- Housing design
- Plug for carrier terminal blocks
- Mounting type
- Pluggable module for receptacle terminal blocks
Physical Data
- Depth
- 52 mm / 2.047 inches
- Height from upper-edge of DIN-rail
- 82.5 mm / 3.25 inches
Safety And Protection
- Dielectric strength, input/output (AC, 1 min)
- 1.5 kVrms
- Pollution degree
- 2
- Rated surge voltage
- 4 kV
- Rated voltage
- 250 V
Specifications
- Product Group Code
- 0006
