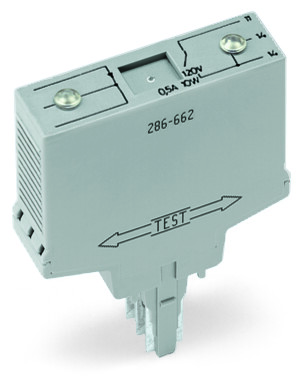

WAGO 286-662
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Current flow monitoring module; DC currents; Monitoring range: 0.4 A – 3.5 A; 1 make contact; light gray
WAGO 286-662 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85364900990
- GTIN
- 4045454415730
- Packaging type
- Box
Electrical Data
- Limiting continuous current
- 0.5 A
- Measurement span (max.)
- 0.4 … 3.5 ADC (−20 … +40 °C); 0.4 … 3 ADC (−20 … +60 °C); 0.4 … 2 ADC (−20 … +70 °C)
- Number of make/switch-on contacts
- 1
- Operating voltage
- 12 … 28 VDC
- Response time
- 0.5 ms
- Switching power (resistive) max.
- DC 10 W
- Switching voltage (max.)
- DC 200 V
- Turn on/off point
- 0.35 A / 0.07 A
- Voltage drop
- 24 … 240 mV
Environmental Requirements
- Ambient temperature (operation)
- -25 … +40 °C
- Operating altitude (max.)
- 2000 m
- Relative humidity
- 5 … 95 % (no condensation permissible)
Material Data
- Color
- Light gray
- Fire load
- 0.346 MJ
- Weight
- 22.700 g
Mechanical Data
- Housing design
- Plug for carrier terminal blocks
- Mounting type
- Pluggable module for receptacle terminal blocks
Physical Data
- Depth
- 52 mm / 2.047 inches
- Height from upper-edge of DIN-rail
- 82.5 mm / 3.25 inches
Safety And Protection
- Dielectric strength, input/output (AC, 1 min)
- 1.5 kVrms
Specifications
- Product Group Code
- 0006
