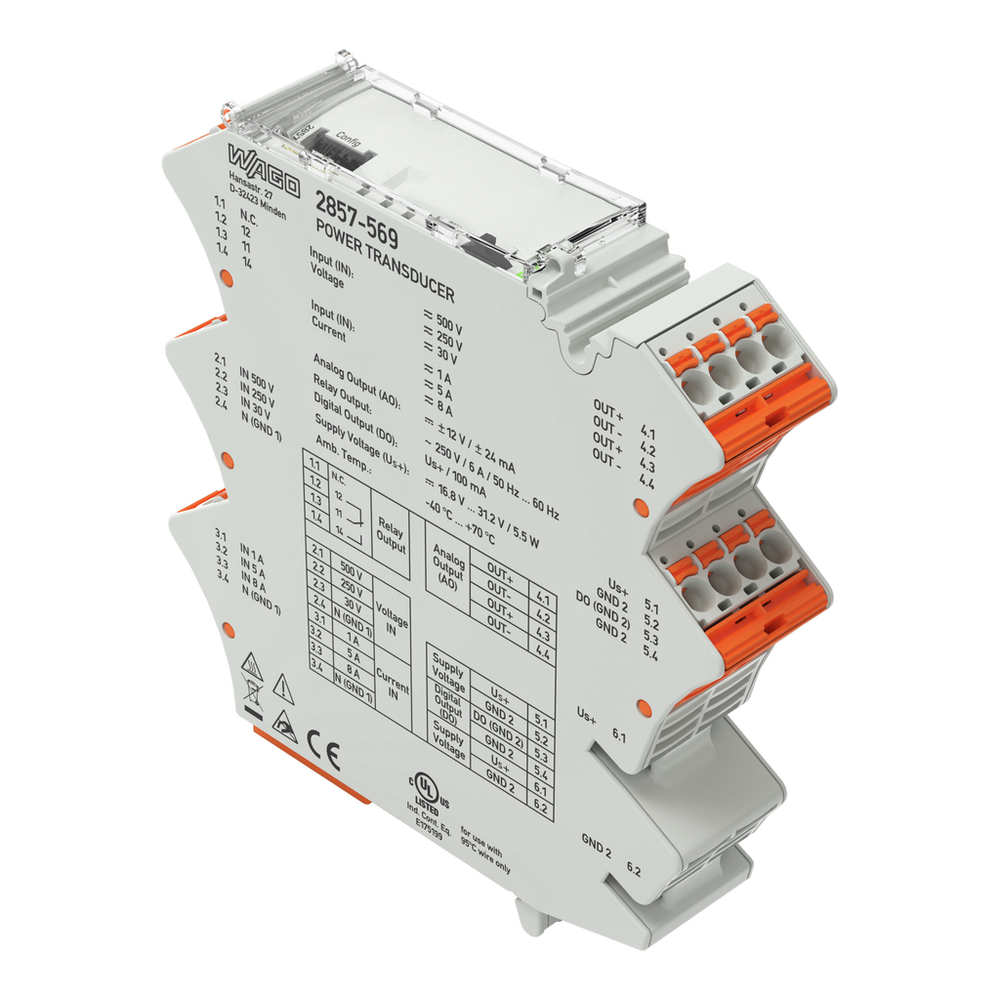

WAGO 2857-569

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85437090300
• GTIN
  • 4055143907323
• Packaging type
  • Bag

Configuration

• Configuration options
  • WAGO Interface Configuration Software || WAGO Configuration Display

Connection Data

• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.2 … 2.5 mm² / 24 … 12 AWG
• Solid conductor
  • 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length
  • 9 … 10 mm / 0.35 … 0.39 inches
• WAGO connector
  • picoMAX® 5.0

Environmental Requirements

• Ambient temperature (operation)
  • -40 … +70 °C
• Ambient temperature (storage)
  • -40 … +85 °C
• Operating altitude (max.)
  • 2000 m
• Relative humidity
  • 5 … 85 % (non-condensing)
• Temperature range of connection cable
  • ≥ (Tambient + 25 K)
• Temperature range of connection cable (UL)
  • 95 °C

Input

• Frequency range
  • 15 … 400 Hz
• Input current (max.)
  • 1.2 × IN (≤ 60 °C); 1 × IN (60 … 70 °C)
• Input signal (current)
  • AC/DC 1 A (IN 3.1); AC/DC 5 A (IN 3.2) ; 8 A AC/DC (IN 3.3)
• Input signal type
  • Voltage || Current
• Input signal (voltage)
  • AC/DC 500 V (IN 2.1; per EN 61010-1); AC/DC 300 V (IN 2.1; per UL 61010-1); AC/DC 250 V (IN 2.2) ; 30 V AC/DC (IN 2.3)
• Input voltage (max.)
  • 1.2 × UN
• Resolution (current)
  • 1 mA (for all measurement ranges)
• Resolution (voltage)
  • 50 mV (IN 2.1) || 30 mV (IN 2.2) || 5 mV (IN 2.3)
• Response threshold (current)
  • 1.5 mAAC / 7.5 mADC (IN 3.1) || 3 mAAC / 10 mADC (IN 3.2) || 7.5 mAAC / 12 mADC (IN 3.3)
• Response threshold (voltage)
  • 500 mVAC / 600 mVDC (IN 2.1) || 50 mVAC / 500 mVDC (IN 2.2) || 20 mVAC / 100 mVDC (IN 2.3)

Insulation Parameters

• Insulation type (input IN 2.1/relay output)
  • Reinforced insulation (safe isolation)
• Insulation type (input/supply and analog output/relay output)
  • Double insulation (impedance and basic insulation) || Requirement: The N (GND 1) input is dangerous when active!
• Overvoltage category
  • III
• Pollution degree
  • 2

Insulation Parameters(Ul)

• Insulation type (input/supply and analog output/relay output)
  • Reinforced insulation (safe isolation)
• Overvoltage category
  • III
• Pollution degree
  • 2

Material Data

• Fire load
  • 2.168 MJ
• Weight
  • 149.000 g

Measurement Error

• Transmission error (max.)
  • ≤ 0.5 % for current and voltage (of the full scale value)

Mechanical Data

• Mounting type
  • DIN-35 rail

Notes

• Note
  • This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 6 A is not exceeded.Additional setting options via WAGO Interface Configuration Software or WAGO Configuration Display

Output (Analog)

• Load impedance (current output)
  • ≤ 600 Ω
• Load impedance (voltage output)
  • ≥ 2 kΩ
• Output signal (current)
  • ±24 mA (SELV)
• Output signal type
  • Current || Voltage
• Output signal (voltage)
  • ± 12 V (SELV)

Output (Digital)

• Configurable functions (DO)
  • Disabled || US/GND switching || Threshold value switch || Frequency generator || Pulse output (S0 interface)
• Configurable rise/fall delay time (DO)
  • 0 … 60 s (via software)
• Continuous current (DO) max.
  • 100 mA (no internal restriction)
• Number of switching thresholds (DO)
  • 2 (max.)
• Setting range (frequency generator)
  • 0.3 … 100 Hz
• Setting range (pulse output)
  • 1000 … 1 pulses/kW(h)
• Switching voltage (DO) max.
  • Supply voltage (applied): −0.3 V

Output (Relay)

• Configurable rise/fall delay time (relay)
  • 0 … 60 s (via software)
• Dielectric strength (open contact) (AC, 1 min)
  • 1 kVrms
• Number of changeover/switchover contacts
  • 1
• Number of switching thresholds (relay)
  • 1 or 2 (adjustable)
• Switching voltage (max.)
  • AC 250 V

Physical Data

• Depth from upper-edge of DIN-rail
  • 107 mm / 4.213 inches
• Height
  • 110 mm / 4.331 inches
• Width
  • 22.5 mm / 0.886 inches

Signaling And Communication

• Configuration options
  • WAGO Interface Configuration Software || WAGO Configuration Display
• Input signal (voltage)
  • AC/DC 500 V (IN 2.1; per EN 61010-1); AC/DC 300 V (IN 2.1; per UL 61010-1); AC/DC 250 V (IN 2.2) ; 30 V AC/DC (IN 2.3)

Signal Processing

• Limit frequency
  • 2 kHz
• Measured variables (calculated)
  • Active power || Apparent power || Reactive power || Mains frequency || Phase angle
• Measurement method
  • True RMS measurement (TRMS)
• Software filter (adjustable)
  • Filter level: 1 … 30
• Step response (max.)
  • 350 ms (for default settings)

Specifications

• Product Group Code
  • 0006

Standards And Specifications

• Conformity marking
  • CE
• EMC emission of interference
  • EN 61000-6-3; EN 61326-2-3
• EMC immunity to interference
  • EN 61000-6-2; EN 61326-2-3
• Standards/specifications
  • EN 61010-1 || UL 61010-1 || UL 61010-2-201

Supply

• Current consumption at nominal supply voltage
  • ≤ 70 mA (+ IDO)
• Nominal supply voltage US
  • DC 24 V (SELV)
• Power supply type
  • 24 VDC
• Supply voltage range
  • ±30 %

Test Voltage

• Test voltage (input IN 2.1/relay output; per EN 61010-1)
  • 5.4 kVAC ; 50 Hz; 5 s || 3.6 kVAC; 50 Hz; 1 min
• Test voltage (input IN 2.1/relay output; per UL 61010-1)
  • 3.51 kVAC; 60 Hz; 1 min
• Test voltage (input/supply and analog output/relay output)
  • 3.51 kVAC; 50 … 60 Hz; 1 min
• Test voltage (supply/analog output)
  • 3.6 kVAC; 50 … 60 Hz; 1 min
