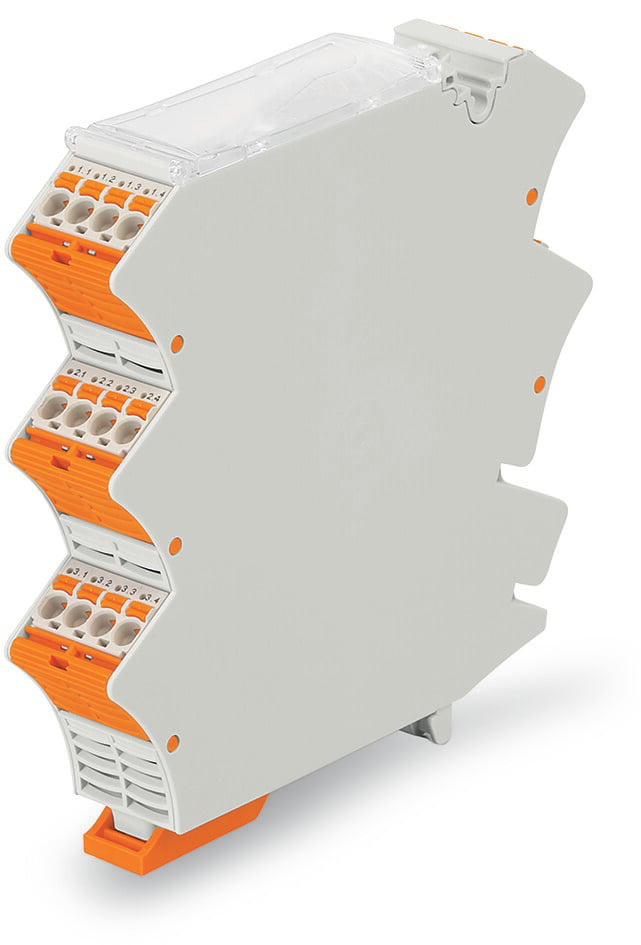

WAGO 2857-122
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Empty housing
WAGO 2857-122 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85472000900
- GTIN
- 4050821561439
- Packaging type
- Box
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 2.5 mm² / 24 … 12 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.2 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with uninsulated ferrule
- 0.2 … 2.5 mm² / 24 … 14 AWG
- Number of jumper slots
- 2
- Number of levels
- 3
- Pole number
- 4
- Solid conductor
- 0.2 … 2.5 mm² / 24 … 12 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Environmental Requirements
- Ambient temperature (operation)
- -40 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact material
- Electrolytic copper (ECu)
- Fire load
- 2.168 MJ
- Flammability class per UL94
- V0
- Housing material
- PC
- Weight
- 99.657 g
Mechanical Data
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 107 mm / 4.213 inches
- Height
- 110 mm / 4.331 inches
- Pin spacing
- 5 mm / 0.197 inches
- Width
- 22.5 mm / 0.886 inches
Ratings Per Csa
- Rated current CSA (Use Group B)
- 15 A
- Rated current CSA (Use Group D)
- 10 A
- Rated voltage CSA (Use Group B)
- 300 V
- Rated voltage CSA (Use Group D)
- 300 V
Ratings Per Iec/En 60664-1
- Nominal voltage (II/2)
- 630 V
- Nominal voltage (III/3)
- 250 V
- Rated current
- 16 A
- Rated impulse voltage (III/2)
- 4 kV
- Rated impulse voltage (III/3)
- 4 kV
- Rated surge voltage (II/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
Ratings Per Ul 1059
- Rated current UL (Use Group B)
- 15 A
- Rated voltage UL (Use Group B)
- 300 V
- Rated voltage UL (Use Group D)
- 300 V
Specifications
- Product Group Code
- 0006
