WAGO 285-157
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

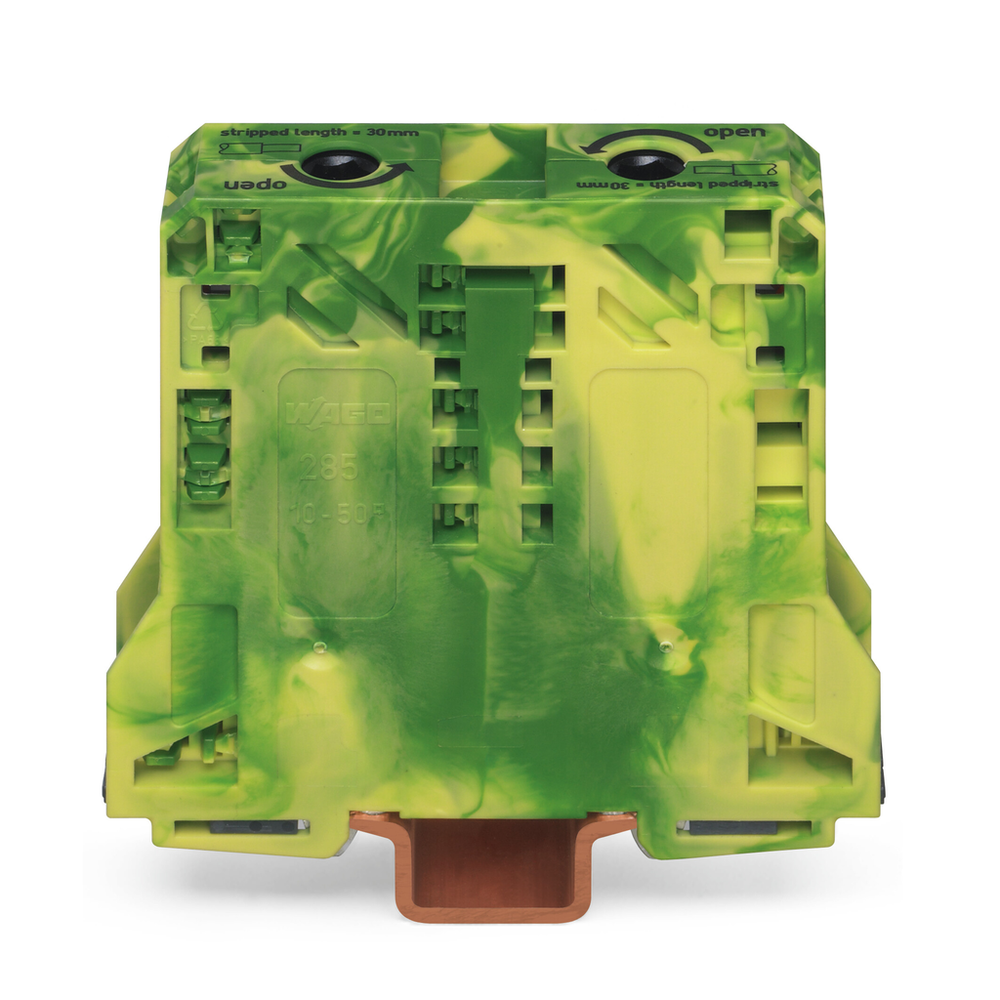

POWER CAGE CLAMP ground terminal block; DIN 35 x 15 rail mount; 2-conductor; 2/0 AWG fine-stranded, 1/0 AWG solid/stranded; 20 mm wide; green-yellow
WAGO 285-157 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- PL
- Customs tariff number
- 85369010000
- GTIN
- 4045454507435
- Packaging type
- Box
Connection 1
- Actuation type
- T-wrench; 8 mm
- Connectable conductor materials
- Copper
- Connection technology
- POWER CAGE CLAMP
- Fine-stranded conductor
- 10 … 70 mm² / 8 … 2/0 AWG
- Fine-stranded conductor; with insulated ferrule
- 10 … 50 mm² / 8 … 1/0 AWG
- Fine-stranded conductor; with uninsulated ferrule
- 10 … 50 mm² / 8 … 1/0 AWG
- Solid conductor
- 10 … 50 mm² / 8 … 1/0 AWG
- Stranded conductor
- 10 … 50 mm² / 8 … 1/0 AWG
- Strip length
- 30 mm / 1.18 inches
- Wiring direction
- Side-entry wiring
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Processing temperature
- -35 … +85 °C
Material Data
- Color
- Green-yellow
- Fire load
- 1.986 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 186.522 g
Mechanical Data
- Marking level
- Side marking
- Mounting (note)
- Only suitable for DIN 35 x 15 copper rail; 2.3 mm thick
- Mounting type
- DIN-rail 35 x 15
Physical Data
- Depth from upper-edge of DIN-rail
- 87 mm / 3.425 inches
- Height
- 94 mm / 3.701 inches
- Width
- 20 mm / 0.787 inches
Ratings Per Iec/En
- Ratings per
- IEC/EN 60947-7-2
Specifications
- Product Group Code
- 0001
