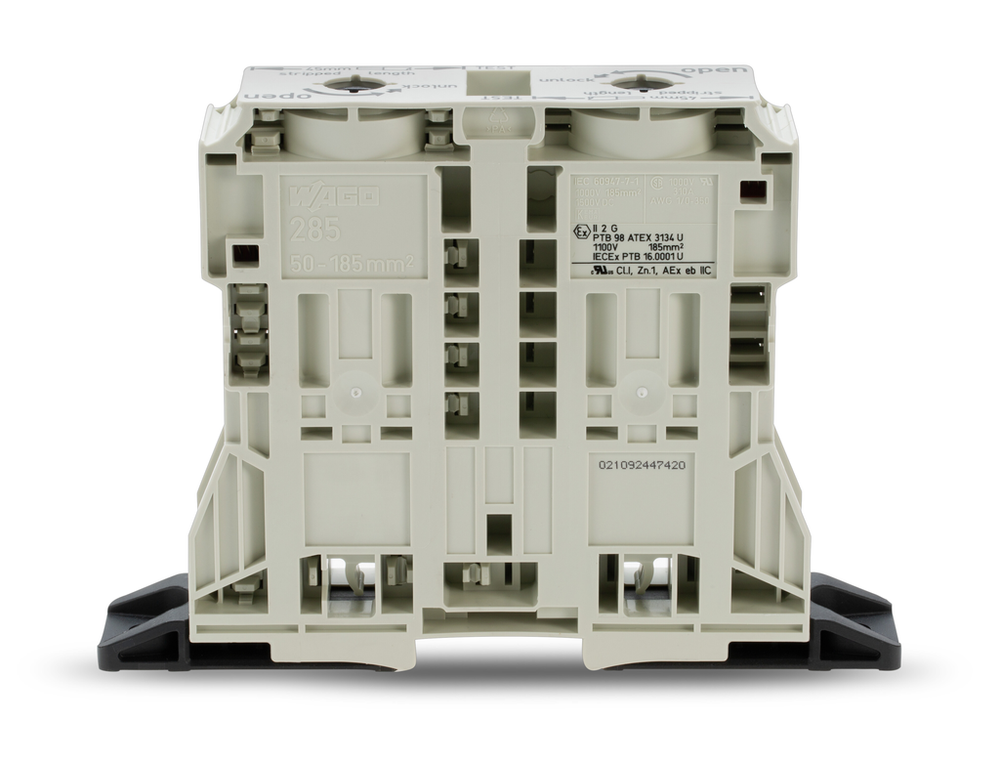

WAGO 285-1163

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• Packaging type
  • Box

Connection 1

• Actuation type
  • T-wrench; 8 mm
• Connectable conductor materials
  • Copper
• Connection technology
  • POWER CAGE CLAMP
• Fine-stranded conductor
  • 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Fine-stranded conductor; with insulated ferrule
  • 50 … 150 mm² / 1/0 AWG … 300 kcmil
• Fine-stranded conductor; with uninsulated ferrule
  • 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Nominal cross-section
  • 185 mm² / 350 kcmil
• Solid conductor
  • 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Stranded conductor
  • 50 … 185 mm² / 1/0 AWG … 350 kcmil
• Strip length
  • 45 … 47 mm / 1.77 … 1.85 inches
• Wiring direction
  • Side-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

Ex Information

• Rated current (Ex e II)
  • 250 A
• Rated current (Ex e II) with jumper
  • 236 A
• Rated voltage EN (Ex e II)
  • 1000 V
• Ratings per
  • ATEX: PTB 98 ATEX 3134 U (Ex eb IIC Gb)
• Reference hazardous areas
  • See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Material Data

• Color
  • Light gray
• Fire load
  • 0.000 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 0.000 g

Mechanical Data

• Marking level
  • Side marking
• Mounting type
  • Mounting flange

Physical Data

• Depth
  • 170 mm / 6.693 inches
• Height from the surface
  • 123 mm / 4.843 inches
• Width
  • 32 mm / 1.26 inches

Power Loss

• Power loss, per pole (potential)
  • 11.2148 W
• Rated current IN for specified power loss
  • 353 A
• Resistance value for specified, current-dependent power loss
  • 9e-005 Ω

Ratings Per Csa

• Approvals per
  • CSA 22.2 No 158
• Rated current CSA (Use Group B)
  • 310 A
• Rated current CSA (Use Group D)
  • 310 A
• Rated voltage CSA (Use Group B)
  • 1000 V
• Rated voltage CSA (Use Group D)
  • 1000 V

Ratings Per Iec/En

• Ratings per
  • IEC/EN 60947-7-1

Ratings Per Ul 1059

• Approvals per
  • UL 1059
• Rated current UL (Use Group B)
  • 310 A
• Rated current UL (Use Group C)
  • 310 A
• Rated voltage UL (Use Group B)
  • 600 V
• Rated voltage UL (Use Group C)
  • 600 V

Specifications

• Product Group Code
  • 0001
