WAGO 283-607
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

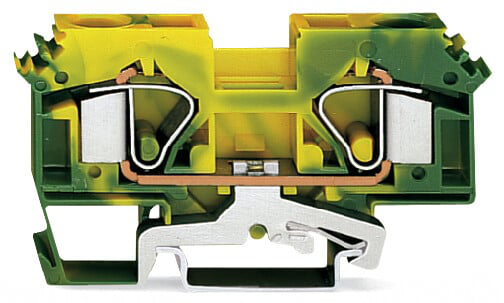

2-conductor ground terminal block; 16 mm²; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 16,00 mm²; green-yellow
WAGO 283-607 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4045454084547
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 16 mm² / 24 … 6 AWG
- Solid conductor
- 0.2 … 16 mm² / 24 … 6 AWG
- Strip length
- 16 … 17 mm / 0.63 … 0.67 inches
- Wiring direction
- Front-entry wiring
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Processing temperature
- -35 … +85 °C
Material Data
- Color
- Green-yellow
- Fire load
- 0.449 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 42.042 g
Mechanical Data
- Design
- Horizontal type
- Marking level
- Side marking
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 37.5 mm / 1.476 inches
- Height
- 80 mm / 3.15 inches
- Width
- 12 mm / 0.472 inches
Ratings Per Iec/En
- Ratings per
- IEC/EN 60947-7-2
Specifications
- Product Group Code
- 0001
