Description

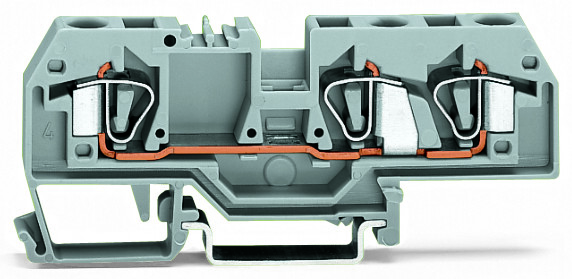

3-conductor through terminal block; 6 mm²; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 6,00 mm²; light gray
WAGO 282-993 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4044918386203
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 6 mm² / 24 … 10 AWG
- Solid conductor
- 0.2 … 6 mm² / 24 … 10 AWG
- Strip length
- 12 … 13 mm / 0.47 … 0.51 inches
- Wiring direction
- Front-entry wiring
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Processing temperature
- -35 … +85 °C
Ex Information
- Rated current (Ex e II)
- 39 A
- Rated voltage EN (Ex e II)
- 550 V
- Reference hazardous areas
- See application instructions in section “Knowledge and Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Material Data
- Color
- Light gray
- Fire load
- 0.335 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 21.450 g
Mechanical Data
- Marking level
- Center marking
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 32.5 mm / 1.28 inches
- Height
- 93 mm / 3.661 inches
- Width
- 8 mm / 0.315 inches
Power Loss
- Power loss, per pole (potential)
- 1.1864 W
- Rated current IN for specified power loss
- 39 A
- Resistance value for specified, current-dependent power loss
- 0.00078 Ω
Ratings Per Iec/En
- Ratings per
- IEC/EN 60947-7-1
Specifications
- Product Group Code
- 0001
