WAGO 280-502/281-605
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

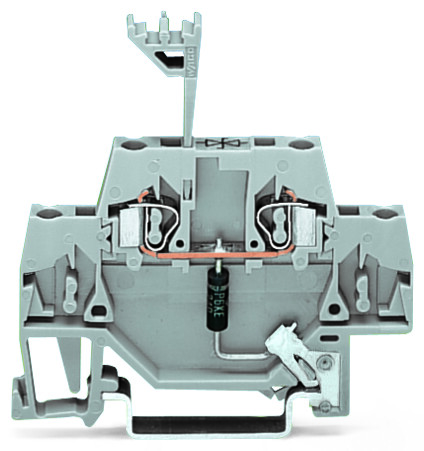

Terminal block with suppressor diode; with direct connection to DIN rail; 110 VDC
WAGO 280-502/281-605 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4045454585242
- Packaging type
- Box
Connection Data
- Connections (number)
- 2
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Electrical Data
- Capacitance
- ≤ 400 pF
- Highest continuous voltage
- DC 136 V
- Nominal discharge current (10/1000 µs) (line)
- 2.7 A
- Nominal operating voltage
- DC 110 V
- Protection level (10/1000 μs)
- ≤ DC 219 V
- Rated continuous current
- 20 A
Environmental Requirements
- Processing temperature
- -35 … +85 °C
Material Data
- Color
- Gray
- Fire load
- 0.246 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Weight
- 8.101 g
Mechanical Data
- Design
- With direct connection to DIN-rail
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 64 mm / 2.52 inches
- Height from upper-edge of DIN-rail
- 58.5 mm / 2.303 inches
- Width
- 5 mm / 0.197 inches
Specifications
- Product Group Code
- 0001
