Description

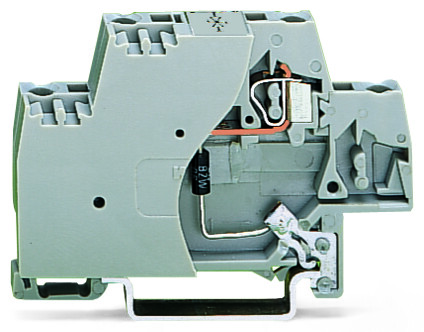

Terminal block with suppressor diode and end plate; with direct connection to DIN rail; 110 VDC
WAGO 280-502/281-592 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4017332262798
- Packaging type
- Box
Connection Data
- Connections (number)
- 2
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Electrical Data
- Capacitance
- ≤ 850 pF
- Highest continuous voltage
- DC 128 V
- Nominal discharge current (8/20 µs) (line)
- 38 A
- Nominal operating voltage
- DC 110 V
- Protection level (8/20 μs)
- ≤ DC 265 V
- Rated continuous current
- 20 A
Environmental Requirements
- Processing temperature
- -35 … +85 °C
Material Data
- Color
- Gray
- Fire load
- 0.364 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Weight
- 12.230 g
Mechanical Data
- Design
- With end plate; with direct connection to DIN-rail
- Mounting type
- DIN-35 rail
Physical Data
- Depth
- 64 mm / 2.52 inches
- Height from upper-edge of DIN-rail
- 39.5 mm / 1.555 inches
- Width
- 10 mm / 0.394 inches
Specifications
- Product Group Code
- 0001
