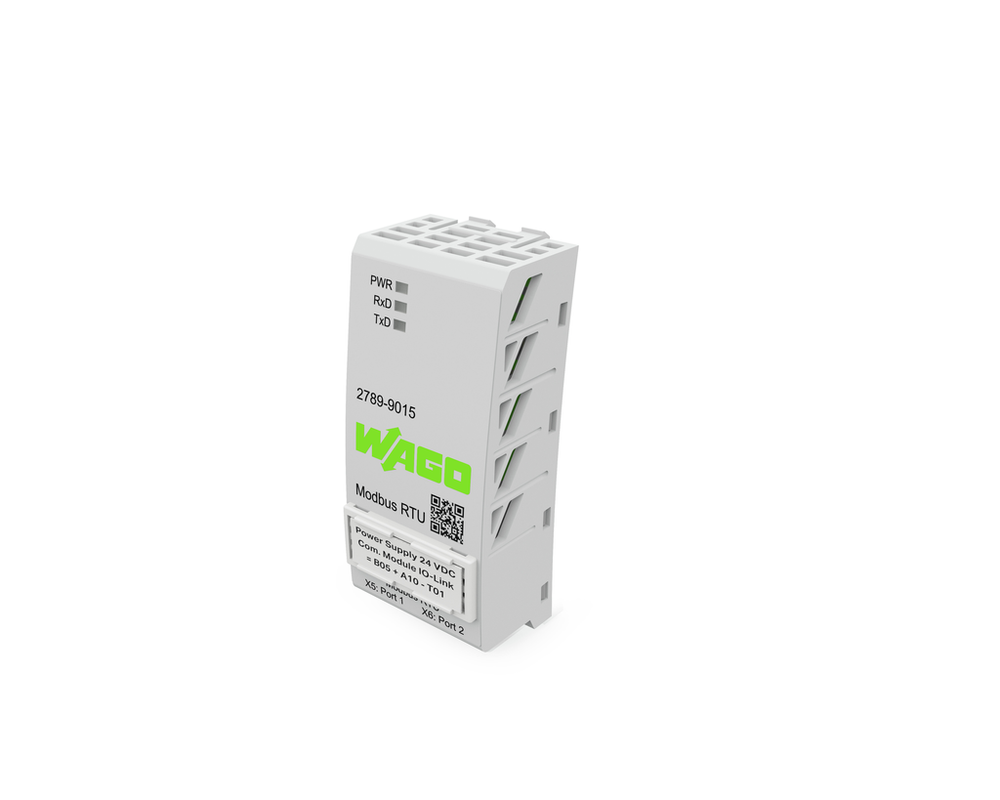

WAGO 2789-9015
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Communication module; Modbus RTU; RJ45; communication capability
WAGO 2789-9015 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85176200000
- GTIN
- 4055144020281
Connection Data
- Connector
- 2 x RJ-45
- Transmission medium
- Shielded copper cable
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Operating altitude (max.)
- 5000 m
- Relative humidity
- 5 … 95 % (no condensation permissible)
Input
- Input current Ii
- ≤ 0.04 A
- Input voltage range
- DC 4.5 … 5.5 V(SELV)
- Nominal input voltage Ui nom
- DC 5 V (SELV)
Material Data
- Fire load
- 0.000 MJ
- Weight
- 35.000 g
Mechanical Data
- Mounting type
- Snaps onto a Pro 2 Power Supply's communication interface (X4)
Physical Data
- Depth
- 22 mm / 0.866 inches
- Height
- 80 mm / 3.15 inches
- Note (dimensions)
- Depth in mounted state
- Width
- 35 mm / 1.378 inches
Safety And Protection
- Insulation type
- Functional insulation
- Pollution degree
- 2
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Test voltage (input/output)
- AC 2 kV; 50 Hz; 1 min
- Test voltage (input/output/shield)
- 1 kVAC; 50 Hz; 1 min
Signaling And Communication
- Baud rate
- 4.8 kBd … 115.2 kBd
- Communication
- Modbus RTU via RS-485
- Number of devices (max.)
- 247
- Signaling
- 1 x LED PWR (green) || 1 x LED RxD (yellow) || 1 x LED TxD (yellow)
- Transmission medium (communication/fieldbus)
- Shielded copper cable
Specifications
- Product Group Code
- 0037
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 61010-1 || UL 61010-2-201 || UL HazLoc
