WAGO 2687-2144
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

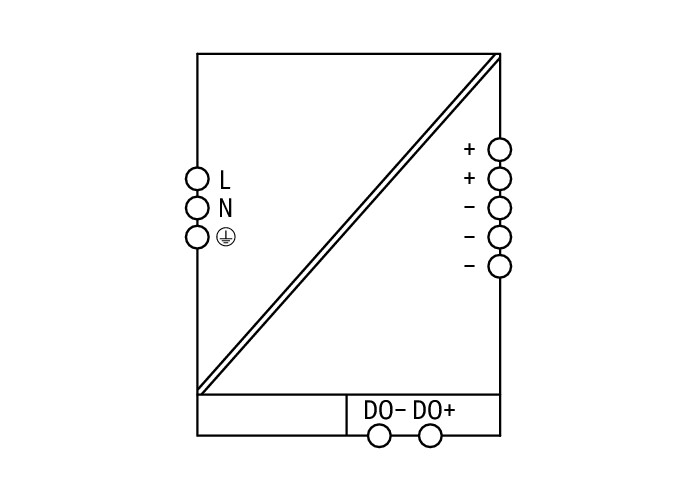

Power supply; Eco 2; 1-phase; 24 VDC output voltage; 5 A output current; DC OK contact
WAGO 2687-2144 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circuit Protection
- Backup fusing (recommended)
- 16 A (for USA/Canada: 15 A)
- Internal fuse
- T 3.15 A / 250 VAC
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85044083900
- GTIN
- 4066966207439
Connection Data
- Connection technology
- Push-in CAGE CLAMP®
- Connection type 1
- Input/output/signaling
- Fine-stranded conductor
- 0.2 … 4 mm² / 24 … 12 AWG
- Solid conductor
- 0.2 … 4 mm² / 24 … 12 AWG
Efficiency/Power Losses
- Efficiency (typ.)
- 90 %
- Power loss Pl
- ≤ 3 W; ≤ 12 W (nominal load)
Environmental Requirements
- Ambient temperature (operation)
- -25 … +70 °C (Device starts at −40 °C (type-tested))
- Ambient temperature (storage)
- -40 … +85 °C
- Derating
- See type label
- Operating altitude (max.)
- 5000 m
- Relative humidity
- 5 … 96 % (no condensation permissible)
Input
- Input current Ii
- ≤ 0.8 A (230 VAC; nominal load); ≤ 1.5 A (100 VAC; nominal load)
- Input voltage range
- 1 x AC 90 … 264 V
- Inrush current
- ≤ 20 A (after 1 ms)
- Mains failure hold-up time
- ≥ 20 ms (230 VAC)
- Nominal input voltage Ui nom
- 1 x AC 100 … 240 V
- Nominal mains frequency range
- 50 … 60 Hz; 0 Hz
- Phases
- 1
- Power factor correction (PFC)
- Active
Material Data
- Fire load
- 0.000 MJ
- Weight
- 620.000 g
Mechanical Data
- Mounting type
- DIN-35 rail
Output
- Default setting
- DC 24 V
- Deviation
- ≤ 1 %
- Nominal output current Io nom
- 5 A (24 VDC)
- Nominal output power
- 120 W
- Nominal output voltage Uo nom
- DC 24 V (SELV)
- Output voltage range
- DC 23 … 28 V (adjustable)
- Overload behavior
- Constant current up to 125 %; shutdown and automatic restart in the event of a short circuit
- Residual ripple
- ≤ 75 mV (peak-to-peak)
Physical Data
- Depth from upper-edge of DIN-rail
- 130 mm / 5.118 inches
- Height
- 130 mm / 5.118 inches
- Width
- 38 mm / 1.496 inches
Safety And Protection
- Isolation voltage (pri.-PE, AC)
- 2200 V
- Isolation voltage (pri.-sec., AC)
- 3510 V
- Isolation voltage (sec.-PE)
- DC 0.5 kV
- Isolation voltage (sec.-signal)
- DC 0.5 kV
- MTBF
- > 1,000,000 h (per IEC 61709)
- Open-circuit-proof
- Yes
- Overvoltage category
- III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)
- Parallel operation
- Yes
- Pollution degree
- 2
- Protection class
- I
- Protection type
- IP20; per EN 60529
- Series operation
- No
- Short-circuit-protected
- Yes
Signaling And Communication
- Signaling
- Optical status indication (overload) || Optical status indication (DC OK) || Digital signal output (DO)
Specifications
- Product Group Code
- 0037
Standards And Specifications
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 61010-1 || UL 61010-2-201 || SEMI F47
