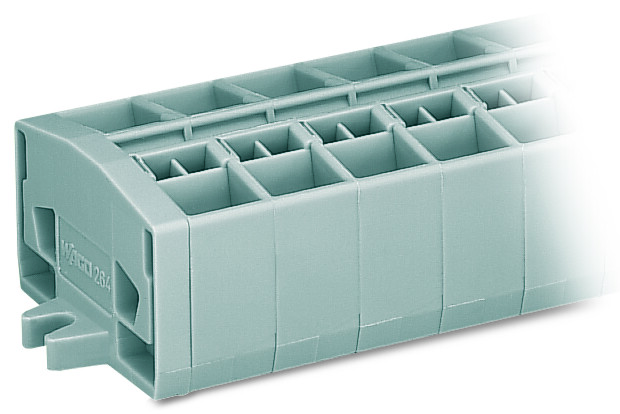

WAGO 264-252
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
4-conductor terminal strip; without push-buttons; with snap-in mounting feet; 2-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
WAGO 264-252 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4044918416009
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Note (conductor cross-section)
- 12 AWG: THHN, THWN
- Pole number
- 2
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
- Wiring direction
- Front-entry wiring
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Processing temperature
- -35 … +85 °C
Material Data
- Color
- Gray
- Fire load
- 0.290 MJ
- Flammability class per UL94
- V0
- Halogen-free
- Yes
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 14.740 g
Mechanical Data
- Design
- Horizontal type
- Marking level
- Center marking
- Mounting type
- Snap-in foot
Physical Data
- Depth
- 32 mm / 1.26 inches
- Height from the surface
- 22.1 mm / 0.87 inches
- Module width
- 10 mm / 0.394 inches
- Width
- 27 mm / 1.063 inches
Ratings Per Iec/En
- Legend (ratings)
- (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Nominal voltage (III/3)
- 800 V
- Rated current
- 24 A
- Rated impulse voltage (III/3)
- 8 kV
Specifications
- Product Group Code
- 0009
