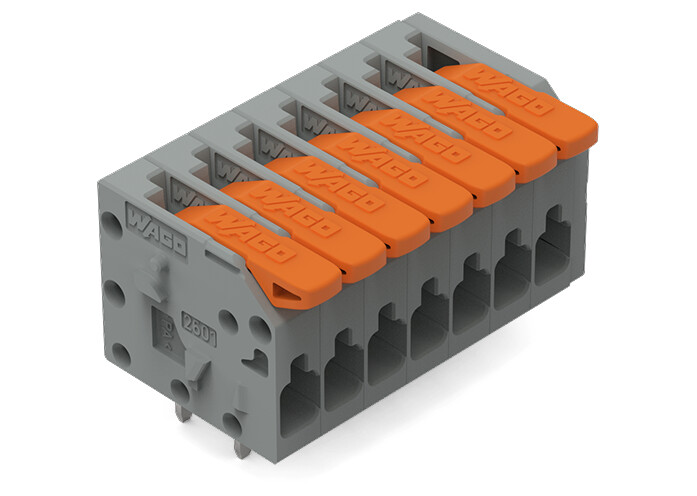

WAGO 2601-1107
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PCB terminal block; lever; 1.5 mm²; Pin spacing 3.5 mm; 7-pole; Push-in CAGE CLAMP®; 1,50 mm²; gray
WAGO 2601-1107 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- PL
- Customs tariff number
- 85369010000
- GTIN
- 4066966241952
Connection 1
- Actuation type
- Lever
- Conductor connection direction to PCB
- 0 °
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.25 … 0.75 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.25 … 1.5 mm²
- Note (conductor cross-section)
- For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using a lever.
- Pole number
- 7
- Solid conductor
- 0.14 … 1.5 mm² / 26 … 16 AWG
- Solid conductor; push-in termination
- 0.5 … 1.5 mm² / 20 … 16 AWG
- Strip length
- 8 … 9 mm / 0.31 … 0.35 inches
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Limit temperature range
- -60 … +105 °C
- Processing temperature
- -35 … +60 °C
Material Data
- Actuator color
- Orange
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Gray
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.105 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 5.470 g
Notes
- Variants:
- Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
Pcb Contact
- Number of solder pins per potential
- 2
- PCB contact
- THT
- Solder pin arrangement
- Over the entire terminal strip (in-line)
Physical Data
- Depth
- 16.58 mm / 0.653 inches
- Drilled hole diameter with tolerance
- 1.2 (+0.1) mm
- Height
- 16.35 mm / 0.644 inches
- Height from the surface
- 12.75 mm / 0.502 inches
- Pin spacing
- 3.5 mm / 0.138 inches
- Solder pin dimensions
- 1 x 0.5 mm
- Solder pin length
- 3.6 mm
- Width
- 26 mm / 1.024 inches
Ratings Per Csa
- Approvals per
- CSA
- Rated current CSA (Use Group B)
- 10 A
- Rated current CSA (Use Group D)
- 10 A
- Rated voltage CSA (Use Group B)
- 300 V
- Rated voltage CSA (Use Group D)
- 300 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 320 V
- Nominal voltage (III/3)
- 160 V
- Rated current
- 17.5 A
- Rated impulse voltage (III/2)
- 2.5 kV
- Rated impulse voltage (III/3)
- 2.5 kV
- Rated surge voltage (II/2)
- 2.5 kV
- Rated voltage (III/2)
- 160 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 10 A
- Rated current UL (Use Group D)
- 10 A
- Rated voltage UL (Use Group B)
- 300 V
- Rated voltage UL (Use Group D)
- 300 V
Specifications
- Product Group Code
- 0004
