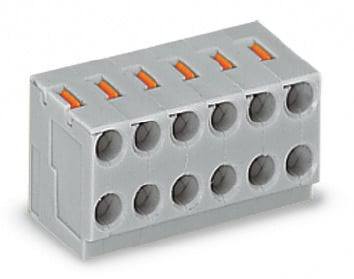

WAGO 252-104
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2-conductor female connector; push-button; PUSH WIRE®; 0.8 mm Ø; Pin spacing 3.5 mm; 4-pole; for solder pin strip; 0,50 mm²; gray
WAGO 252-104 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- PL
- Customs tariff number
- 85366990990
- GTIN
- 4045454039721
- Packaging type
- Box
Connection 1
- Actuation type
- Push-button
- Conductor connection direction to PCB
- 0 °
- Conductor diameter
- 0.4 … 0.8 mm / 26 … 20 AWG
- Connection technology
- PUSH WIRE®
- Pole number
- 4
- Solid conductor
- 0.14 … 0.5 mm² / 26 … 20 AWG
- Strip length
- 6 … 7 mm / 0.24 … 0.28 inches
Environmental Requirements
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Copper alloy
- Color
- Gray
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.048 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 1.818 g
Notes
- Variants:
- Other pole numbers || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
Physical Data
- Depth
- 10.5 mm / 0.413 inches
- Height
- 11 mm / 0.433 inches
- Pin spacing
- 3.5 mm / 0.138 inches
- Width
- 14 mm / 0.551 inches
Plug-In Connection
- Connector (connection type)
- For PCB
- Contact type (pluggable connector)
- Female connector/socket
- Mating direction to the rail-mount terminal block
- 90 °
- Plugging without loss of pin spacing
- Yes
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 630 V
- Nominal voltage (III/3)
- 320 V
- Rated current
- 2 A
- Rated impulse voltage (III/2)
- 4 kV
- Rated impulse voltage (III/3)
- 4 kV
- Rated surge voltage (II/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 2 A
- Rated current UL (Use Group D)
- 2 A
- Rated voltage UL (Use Group B)
- 300 V
- Rated voltage UL (Use Group D)
- 300 V
Specifications
- Product Group Code
- 0004
