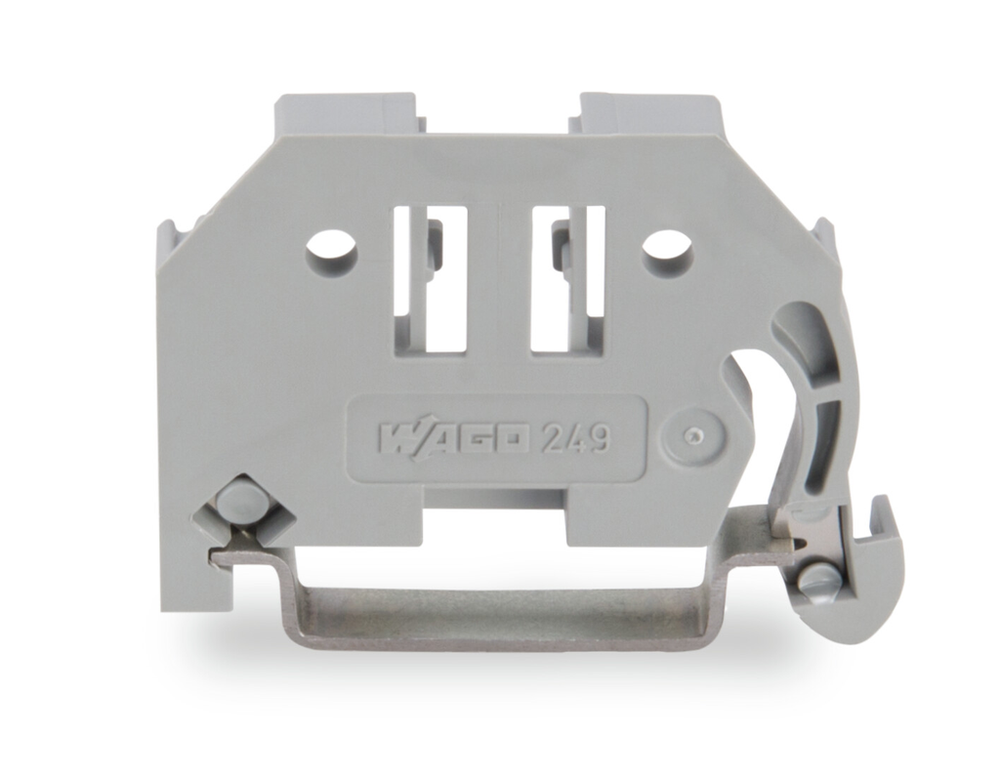

WAGO 249-116
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray
WAGO 249-116 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 39269097900
- GTIN
- 4017332270823
- Packaging type
- Box
Material Data
- Color
- Gray
- Fire load
- 0.104 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Weight
- 3.460 g
Notes
- Note
- Snap on – that's it!Assembling the new WAGO screwless end stop is as simple and quick as snapping a WAGO rail-mount terminal block onto the rail.Tool free!A tool-free design allows rail-mount terminal blocks to be safely and economically secured against any movement on all DIN-35 rails per DIN EN 60715 (35 x 7.5 mm; 35 x 15 mm).Entirely without screws!The “secret” to a perfect fit lies in the two small clamping plates which keep the end stop in position, even if the rails are mounted vertically.Simply snap on – that's it!In addition, costs are significantly reduced when using large numbers of end stops.Additional benefit: Three marker slots for all WAGO rail-mount terminal block markers and one snap-in hole for WAGO adjustable height group marker carriers offer individual marking options.
Physical Data
- Depth
- 35 mm / 1.378 inches
- Depth from upper-edge of DIN-rail
- 28 mm / 1.102 inches
- Height
- 44 mm / 1.732 inches
- Width
- 6 mm / 0.236 inches
Specifications
- Product Group Code
- 0002
Technical Data
- Main product function
- Mounting accessories
- Mounting type
- DIN-35 rail
