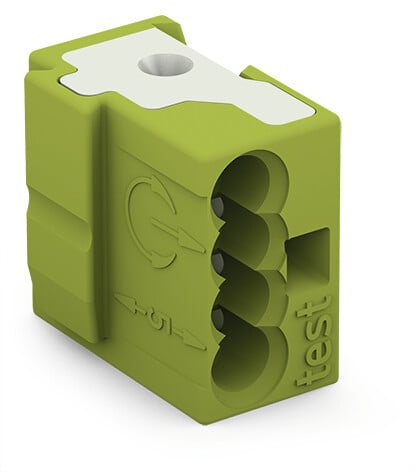

WAGO 243-725
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MICRO PUSH WIRE® PCB connector; 4-conductor; AWG 24 - 18 solid; can be assembled into connector strips via dovetail joints; dark gray
WAGO 243-725 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4055143467407
- Packaging type
- Box
Connection 1
- Conductor connection direction to PCB
- 0 °
- Conductor diameter
- 0.5 … 1 mm / 24 … 18 AWG
- Connectable conductor materials
- Copper
- Connection technology
- PUSH WIRE®
- Pole number
- 1
- Solid conductor
- 0.5 … 1 mm² / 24 … 18 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
Environmental Requirements
- Continuous operating temperature
- -60 °C
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Copper alloy
- Color
- Dark gray
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.012 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 0.762 g
Notes
- Variants:
- Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.
Physical Data
- Depth
- 10.5 mm / 0.413 inches
- Drilled hole diameter with tolerance
- 1.2 (-0.05 … +0.05) mm
- Height
- 10 mm / 0.394 inches
- Pin spacing
- 5.75 mm / 0.226 inches
- Solder pin diameter
- 1 mm
- Solder pin length
- 4.5 mm
- Width
- 5.75 mm / 0.226 inches
Plug-In Connection
- Connector (connection type)
- For PCB
- Contact type (pluggable connector)
- Female connector/socket
- Mating direction to the PCB
- 90 °
Ratings Per Csa
- Approvals per
- CSA
- Rated current CSA (Use Group B)
- 7 A
- Rated current CSA (Use Group D)
- 7 A
- Rated voltage CSA (Use Group B)
- 150 V
- Rated voltage CSA (Use Group D)
- 150 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 630 V
- Nominal voltage (III/3)
- 250 V
- Rated current
- 6 A
- Rated impulse voltage (III/2)
- 4 kV
- Rated impulse voltage (III/3)
- 4 kV
- Rated surge voltage (II/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 7 A
- Rated current UL (Use Group D)
- 7 A
- Rated voltage UL (Use Group B)
- 150 V
- Rated voltage UL (Use Group D)
- 150 V
Specifications
- Product Group Code
- 0007
