WAGO 243-211
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

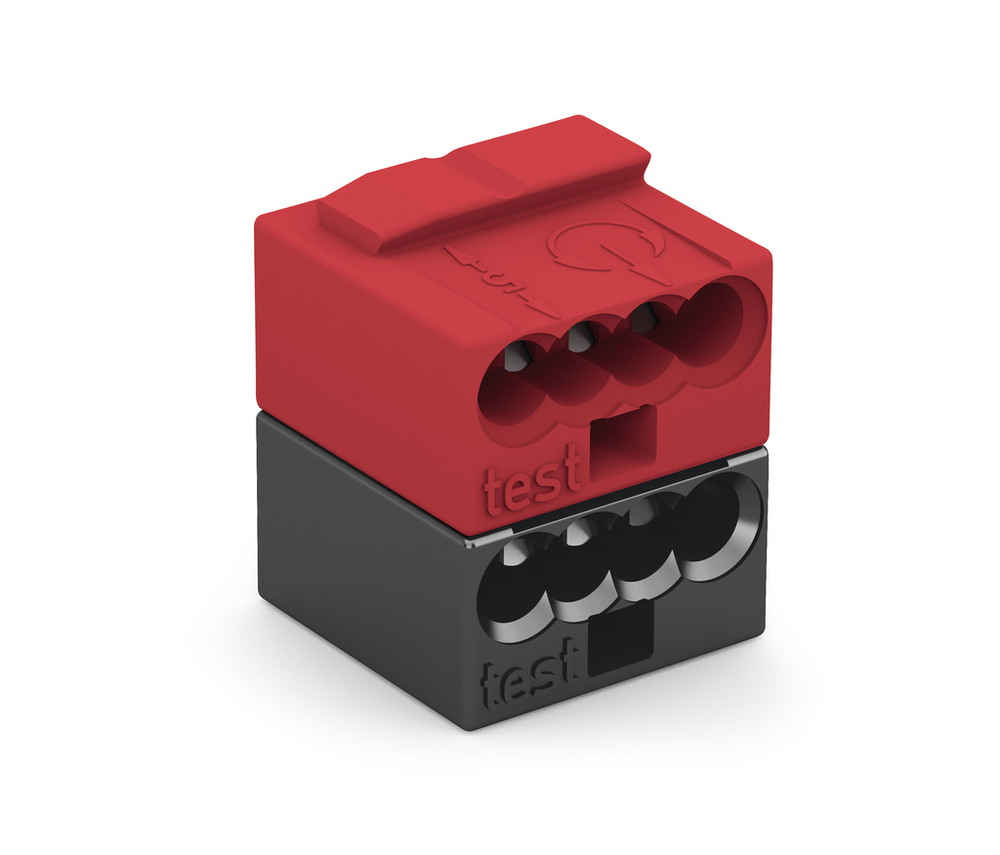

4-conductor modular PCB connector; PUSH WIRE®; 0.8 mm Ø; Pin spacing 5.75 mm; 2-pole; for individual solder pins; for KNX; dark gray/red
WAGO 243-211 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4044918442831
- Packaging type
- Box
Connection 1
- Conductor diameter
- 0.6 … 0.8 mm / 22 … 20 AWG
- Conductor diameter (note)
- When using different conductor diameters
- Connection technology
- PUSH WIRE®
- Pole number
- 2
- Solid conductor
- 22 … 20 AWG
- Strip length
- 5 … 6 mm / 0.2 … 0.24 inches
Connection 2
- Conductor diameter 2
- 1 mm / 18 AWG
- Conductor diameter (note) 2
- When using identical conductor diameters
- Solid conductor 2
- 18 AWG
Environmental Requirements
- Continuous operating temperature
- -60 °C
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Dark gray/red
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.024 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 1.600 g
Physical Data
- Depth
- 10 mm / 0.394 inches
- Height
- 11.5 mm / 0.453 inches
- Width
- 10 mm / 0.394 inches
Plug-In Connection
- Connector (connection type)
- For conductor
- Contact type (pluggable connector)
- Female connector/socket
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 630 V
- Nominal voltage (III/3)
- 250 V
- Rated current
- 6 A
- Rated impulse voltage (III/2)
- 4 kV
- Rated impulse voltage (III/3)
- 4 kV
- Rated surge voltage (II/2)
- 4 kV
- Rated voltage (III/2)
- 100 V
- Ratings per
- IEC/EN 60664-1
Specifications
- Product Group Code
- 0007
