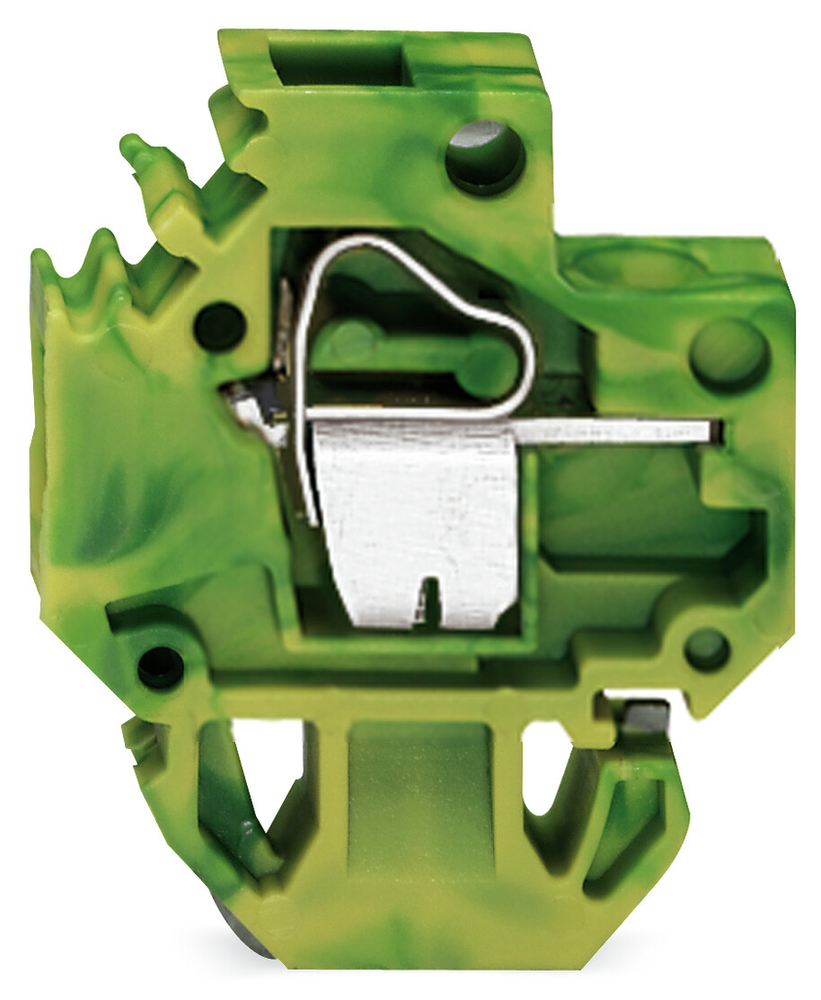

WAGO 226-108
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Through-panel terminal block; modular; quick connect/solder contact 4.8 x 0.8 mm; 1-pole; with direct ground contact; for plate thickness 1.5 mm; green-yellow
WAGO 226-108 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- GTIN
- 4017332107075
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.25 … 2.5 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.25 … 2.5 mm²
- Number of connection points
- 1
- Pole number
- 1
- Solid conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Connection 2
- Number of connection points 2
- 1
Environmental Requirements
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Green-yellow
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.055 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 3.649 g
Mechanical Data
- Direct ground contact to DIN-rail/drilled hole/housing
- Yes
- Housing sheet thickness
- 1.5 … 1.5 mm / 0.059 … 0.059 inches
- Mounting type
- Snap-in foot || Feed-through mounting
Physical Data
- Depth
- 26 mm / 1.024 inches
- Height
- 31.5 mm / 1.24 inches
- Height from the surface
- 22 mm / 0.866 inches
- Pin spacing
- 6 mm / 0.236 inches
- Width
- 6 mm / 0.236 inches
Ratings Per Iec/En
- Rated impulse voltage (III/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
Specifications
- Product Group Code
- 0004
