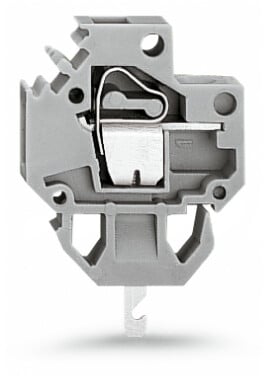

WAGO 226-104
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Through-panel terminal block; modular; quick connect/solder contact 4.8 x 0.8 mm; 1-pole; for plate thickness 1.5 mm; gray
WAGO 226-104 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4044918794374
- Packaging type
- Bag
Connection 1
- Actuation type
- Operating tool
- Connection technology
- CAGE CLAMP®
- Fine-stranded conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.25 … 2.5 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.25 … 2.5 mm²
- Number of connection points
- 1
- Pole number
- 1
- Solid conductor
- 0.08 … 4 mm² / 28 … 12 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Connection 2
- Connection technology 2
- Solder connection
- Number of connection points 2
- 1
Connection 3
- Connection technology 3
- Quick connect contact
Environmental Requirements
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Color
- Gray
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.120 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 3.609 g
Mechanical Data
- Housing sheet thickness
- 1.5 … 1.5 mm / 0.059 … 0.059 inches
- Mounting type
- Snap-in foot || Feed-through mounting
Physical Data
- Depth
- 26 mm / 1.024 inches
- Height
- 36.5 mm / 1.437 inches
- Height from the surface
- 22 mm / 0.866 inches
- Pin spacing
- 6 mm / 0.236 inches
- Solder pin dimensions
- 4.8 x 0.8 mm
- Width
- 6 mm / 0.236 inches
Ratings Per Csa
- Approvals per
- CSA
- Rated current CSA (Use Group B)
- 6 A
- Rated current CSA (Use Group C)
- 6 A
- Rated current CSA (Use Group D)
- 5 A
- Rated voltage CSA (Use Group B)
- 300 V
- Rated voltage CSA (Use Group C)
- 300 V
- Rated voltage CSA (Use Group D)
- 600 V
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 630 V
- Nominal voltage (III/3)
- 320 V
- Rated current
- 20 A
- Rated impulse voltage (III/2)
- 4 kV
- Rated impulse voltage (III/3)
- 4 kV
- Rated surge voltage (II/2)
- 4 kV
- Rated voltage (III/2)
- 320 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Iec/En 2
- Rated current 2
- 6 A
- Rated surge voltage (II/2) 2
- 4 kV
- Rated surge voltage (III/2) 2
- 4 kV
- Rated surge voltage (III/3) 2
- 4 kV
- Rated voltage (II/2) 2
- 630 V
- Rated voltage (III/2) 2
- 320 V
- Rated voltage (III/3) 2
- 320 V
- Ratings per 2
- IEC/EN 60664-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 6 A
- Rated current UL (Use Group C)
- 6 A
- Rated current UL (Use Group D)
- 5 A
- Rated voltage UL (Use Group B)
- 300 V
- Rated voltage UL (Use Group C)
- 300 V
- Rated voltage UL (Use Group D)
- 600 V
Specifications
- Product Group Code
- 0004
