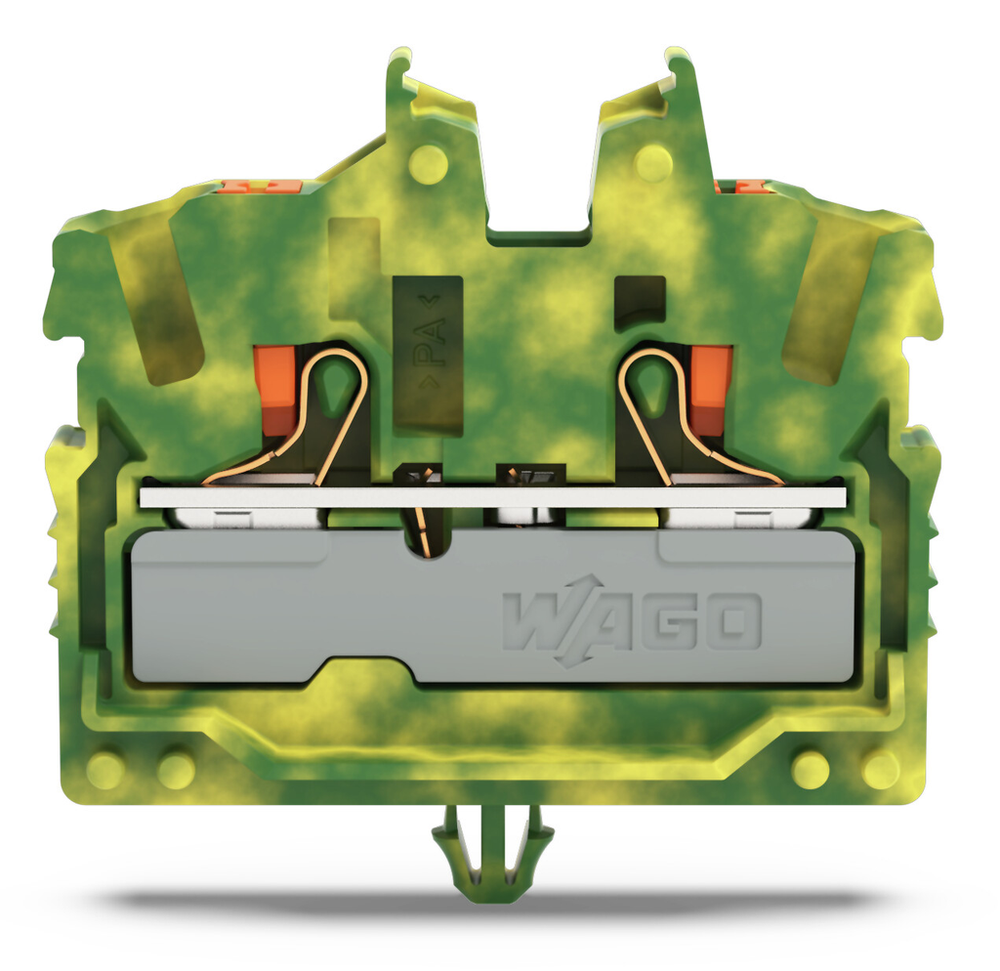

WAGO 2252-317

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• GTIN
  • 4066966147094

Connection 1

• Actuation type
  • Push-button
• Connectable conductor materials
  • Copper
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with ferrule; push-in termination
  • 1 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor; with insulated ferrule
  • 1 … 2.5 mm² / 18 … 14 AWG
• Nominal cross-section
  • 2.5 mm²
• Note (conductor cross-section)
  • Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Solid conductor
  • 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination
  • 1 … 4 mm² / 18 … 12 AWG
• Strip length
  • 10 … 12 mm / 0.39 … 0.47 inches
• Wiring direction
  • Front-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

Ex Information

• Rated current (Ex e II)
  • 22 A
• Rated current (Ex e II) with jumper
  • 20 A
• Rated voltage EN (Ex e II)
  • 550 V
• Ratings per
  • ATEX: PTB 20 ATEX 1013 U / IECEx: PTB 20.0029U (Ex eb IIC Gb)
• Reference hazardous areas
  • See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Material Data

• Color
  • Green-yellow
• Fire load
  • 0.104 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 4.250 g

Mechanical Data

• Marking level
  • Center/side marking
• Mounting type
  • Snap-in foot

Physical Data

• Depth
  • 35.5 mm / 1.398 inches
• Height from the surface
  • 30 mm / 1.181 inches
• Width
  • 5.2 mm / 0.205 inches

Ratings Per Csa

• Approvals per
  • CSA 22.2 No 158
• Rated current CSA (Use Group B)
  • 20 A
• Rated current CSA (Use Group C)
  • 20 A
• Rated voltage CSA (Use Group B)
  • 600 V
• Rated voltage CSA (Use Group C)
  • 600 V

Ratings Per Iec/En

• Nominal voltage (III/3)
  • 800 V
• Rated current
  • 24 A
• Rated impulse voltage (III/3)
  • 8 kV
• Ratings per
  • IEC/EN 60998-2-2

Ratings Per Ul 1059

• Approvals per
  • UL 1059
• Rated current UL (Use Group B)
  • 20 A
• Rated current UL (Use Group C)
  • 20 A
• Rated voltage UL (Use Group B)
  • 600 V
• Rated voltage UL (Use Group C)
  • 600 V

Specifications

• Product Group Code
  • 0038
