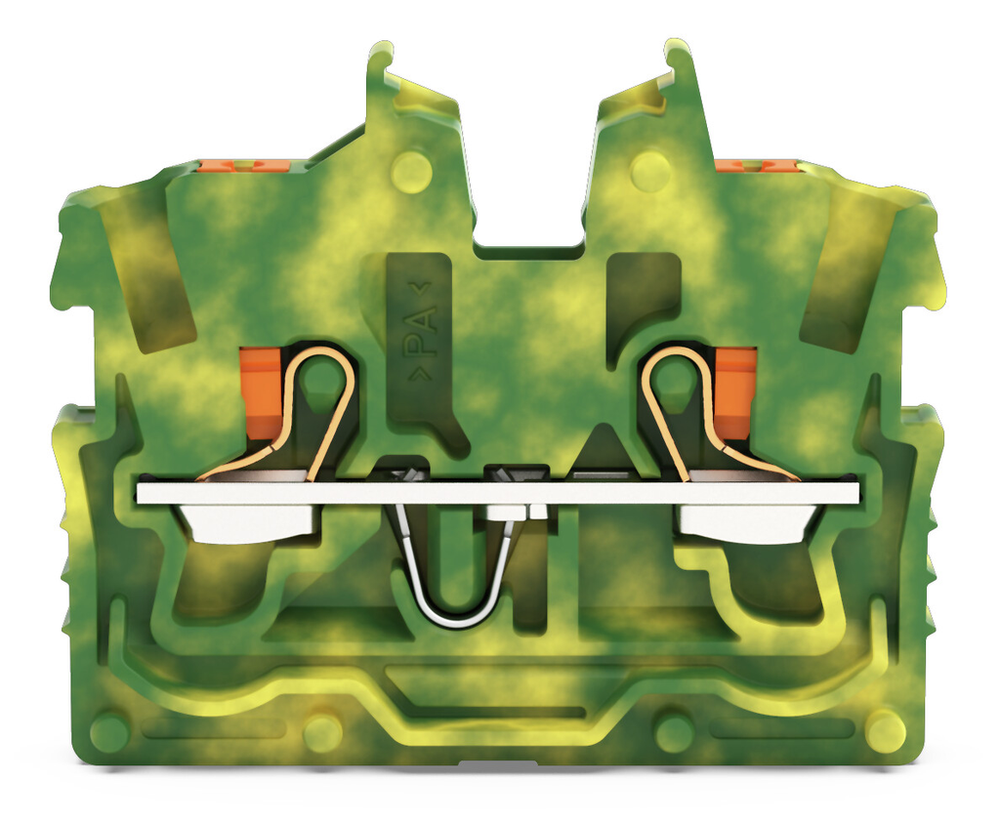

WAGO 2250-327

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• GTIN
  • 4055143965194
• Packaging type
  • Box

Connection 1

• Actuation type
  • Push-button
• Connectable conductor materials
  • Copper
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.14 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination
  • 0.5 … 0.75 mm² / 20 … 18 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.14 … 0.75 mm² / 24 … 18 AWG
• Nominal cross-section
  • 1 mm²
• Note (conductor cross-section)
  • Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Solid conductor
  • 0.14 … 1.5 mm² / 24 … 16 AWG
• Solid conductor; push-in termination
  • 0.5 … 1.5 mm² / 20 … 16 AWG
• Strip length
  • 9 … 11 mm / 0.35 … 0.43 inches
• Wiring direction
  • Front-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

Ex Information

• Rated current (Ex e II)
  • 13.5 A
• Rated current (Ex e II) with jumper
  • 12 A
• Rated voltage EN (Ex e II)
  • 352 V
• Reference hazardous areas
  • See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Material Data

• Color
  • Green-yellow
• Fire load
  • 0.018 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 2.364 g

Mechanical Data

• Marking level
  • Center/side marking
• Mounting type
  • null

Physical Data

• Depth
  • 33.2 mm / 1.307 inches
• Height from the surface
  • 27.2 mm / 1.071 inches
• Width
  • 3.5 mm / 0.138 inches

Power Loss

• Rated current IN for specified power loss
  • 13.5 A
• Resistance value for specified, current-dependent power loss
  • 0.00238 Ω

Ratings Per Csa

• Approvals per
  • CSA 22.2 No 158
• Rated current CSA (Use Group B)
  • 10 A
• Rated current CSA (Use Group C)
  • 10 A
• Rated voltage CSA (Use Group B)
  • 300 V
• Rated voltage CSA (Use Group C)
  • 300 V

Ratings Per Iec/En

• Nominal voltage (III/3)
  • 500 V
• Rated current
  • 13.5 A
• Rated impulse voltage (III/3)
  • 6 kV
• Ratings per
  • IEC/EN 60998-2-2

Ratings Per Ul 1059

• Approvals per
  • UL 1059
• Rated current UL (Use Group B)
  • 10 A
• Rated current UL (Use Group C)
  • 10 A
• Rated voltage UL (Use Group B)
  • 300 V
• Rated voltage UL (Use Group C)
  • 300 V

Specifications

• Product Group Code
  • 0038
