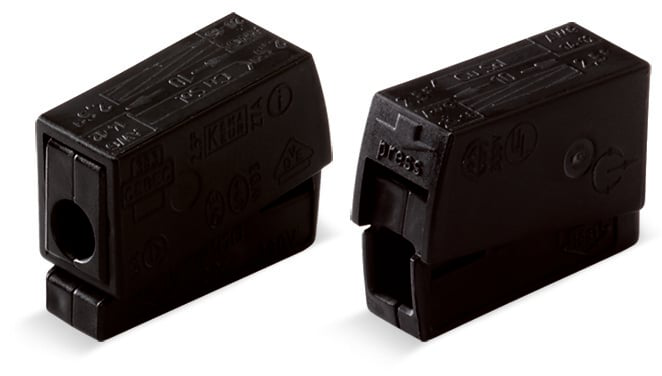

WAGO 224-104

Commercial Data

• Country of origin
  • CH
• Customs tariff number
  • 85369010000
• GTIN
  • 4044918584050
• Packaging type
  • Box

Connection 1

• Actuation type
  • Push-in
• Connectable conductor materials
  • Copper || Aluminum
• Connectable conductor materials (note)
  • Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste.For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm² = 16 A4 mm² = 22 A
• Connection technology
  • PUSH WIRE®
• Connection type 1
  • Installation side
• Solid conductor
  • 1 … 2.5 mm² / 14 … 12 AWG
• Strip length
  • 9 … 11 mm / 0.35 … 0.43 inches
• Wiring direction
  • Side-entry wiring

Connection 2

• Connection technology 2
  • CAGE CLAMP®
• Connection type 2
  • Lighting side
• Fine-stranded conductor 2
  • 0.5 … 2.5 mm² / 20 … 16 AWG
• Number of connection points 2
  • 1
• Solid conductor 2
  • 0.5 … 2.5 mm² / 20 … 16 AWG

Environmental Requirements

• Continuous operating temperature
  • 120 °C

Material Data

• Color
  • Black
• Fire load
  • 0.046 MJ
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 2.200 g

Notes

• Safety information
  • In grounded power lines

Physical Data

• Depth
  • 20.4 mm / 0.803 inches
• Height
  • 15.5 mm / 0.61 inches
• Width
  • 8 mm / 0.315 inches

Ratings Per Iec/En

• Legend (ratings)
  • (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Nominal voltage (II/2)
  • 400 V
• Rated current
  • 24 A
• Rated surge voltage (II/2)
  • 4 kV
• Ratings per
  • EN 60664

Specifications

• Product Group Code
  • 0007
