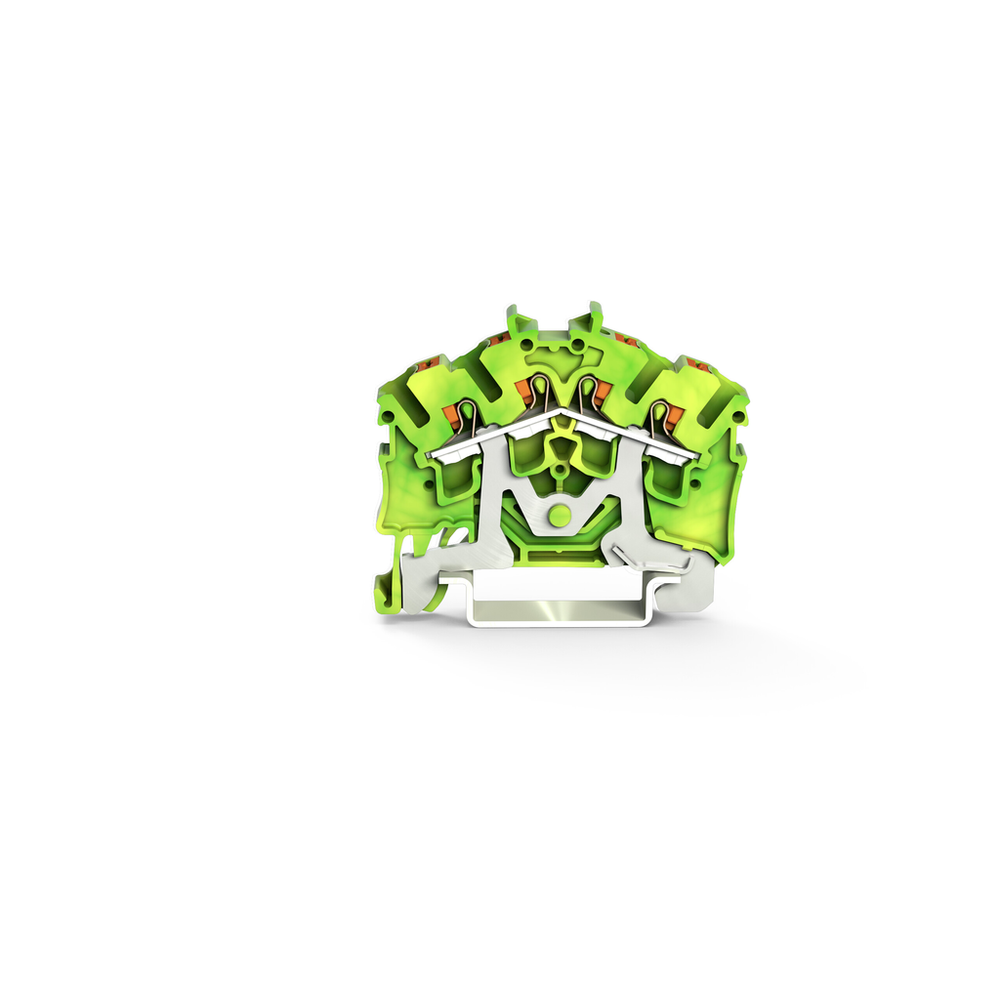

WAGO 2202-6407

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• GTIN
  • 4066966067347
• Packaging type
  • Box

Connection 1

• Actuation type
  • Push-button
• Connectable conductor materials
  • Copper
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with ferrule; push-in termination
  • 1 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor; with insulated ferrule
  • 1 … 2.5 mm² / 18 … 14 AWG
• Nominal cross-section
  • 2.5 mm²
• Note (conductor cross-section)
  • Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Solid conductor
  • 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination
  • 0.75 … 4 mm² / 18 … 12 AWG
• Strip length
  • 10 … 12 mm / 0.39 … 0.47 inches
• Wiring direction
  • Front-entry wiring, angled

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

Ex Information

• Reference hazardous areas
  • See Downloads – Documentation – Additional Information: Technical Section; Technical explanations

Material Data

• Color
  • Green-yellow
• Fire load
  • 0.032 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material data can be found here
• Weight
  • 9.147 g

Mechanical Data

• Marking level
  • Center/side marking
• Mounting type
  • DIN-35 rail

Notes

• Safety information
  • Notice: This terminal block cannot be commoned with push-in type jumper bars.

Physical Data

• Depth from upper-edge of DIN-rail
  • 38.9 mm / 1.531 inches
• Height
  • 52.6 mm / 2.071 inches
• Width
  • 5.2 mm / 0.205 inches

Ratings Per Iec/En

• Ratings per
  • IEC/EN 60947-7-2

Specifications

• Product Group Code
  • 0036
