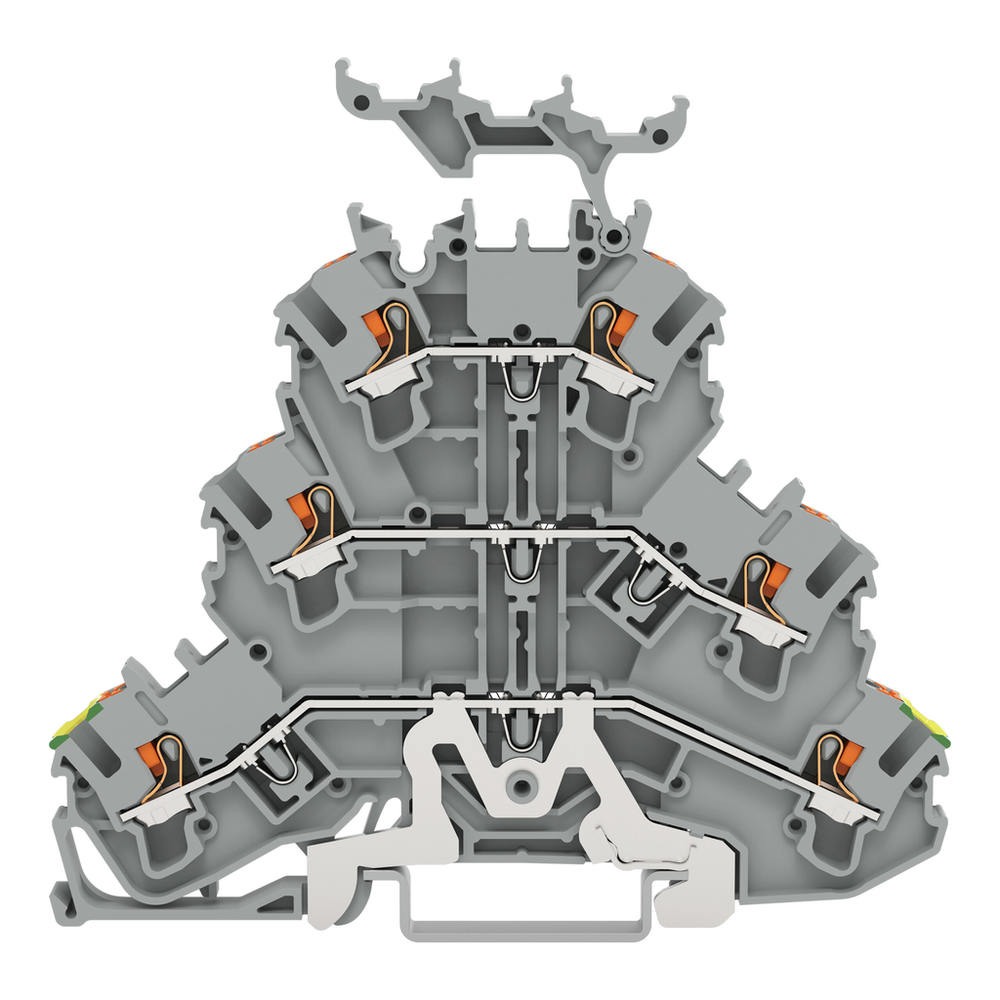

WAGO 2202-3257

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85369010000
• GTIN
  • 4066966194289

Connection 1

• Actuation type
  • Push-button
• Connectable conductor materials
  • Copper
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with ferrule; push-in termination
  • 1 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.25 … 2.5 mm² / 22 … 14 AWG
• Nominal cross-section
  • 2.5 mm²
• Note (conductor cross-section)
  • Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Number of connection points
  • 3
• Solid conductor
  • 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination
  • 0.75 … 4 mm² / 18 … 12 AWG
• Strip length
  • 10 … 12 mm / 0.39 … 0.47 inches
• Wiring direction
  • Front-entry wiring

Connection 2

• Number of connection points 2
  • 3

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

Ex Information

• Rated current (Ex e II)
  • 19 A
• Rated current (Ex e II) with jumper
  • 17 A
• Rated voltage EN (Ex e II)
  • 440 V
• Reference hazardous areas
  • See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”

Material Data

• Color
  • Gray
• Fire load
  • 0.367 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 20.969 g

Mechanical Data

• Marking level
  • Center/side marking
• Mounting type
  • DIN-35 rail
• Potential marking
  • PE/L/L

Physical Data

• Depth from upper-edge of DIN-rail
  • 83.8 mm / 3.299 inches
• Height
  • 93.6 mm / 3.685 inches
• Width
  • 5.2 mm / 0.205 inches

Power Loss

• Power loss, per pole (potential)
  • 0.6437 W
• Rated current IN for specified power loss
  • 22 A
• Resistance value for specified, current-dependent power loss
  • 0.00133 Ω

Ratings Per Iec/En

• Current at conductor cross-section (max.) mm²
  • 26 A
• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 500 V
• Rated current
  • 22 A
• Rated impulse voltage (III/3)
  • 6 kV
• Ratings per
  • IEC/EN 60947-7-1

Specifications

• Product Group Code
  • 0036
