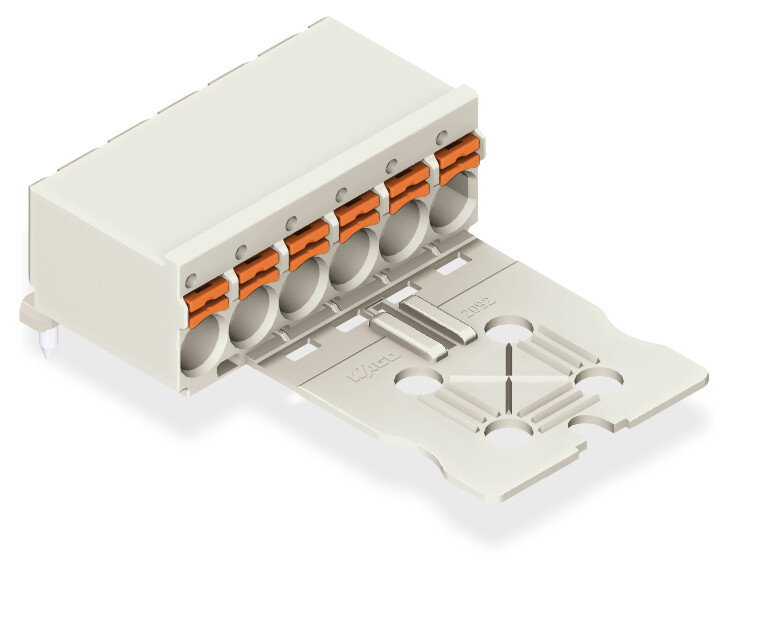

WAGO 2092-1358

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85366990990
• GTIN
  • 4050821165392
• Packaging type
  • Box

Connection 1

• Actuation direction 1
  • Operation parallel to conductor entry
• Actuation type
  • Push-button
• Conductor connection direction to PCB
  • 0 °
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule
  • 0.25 … 2.5 mm²
• Pole number
  • 8
• Solid conductor
  • 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length
  • 9 … 10 mm / 0.35 … 0.39 inches

Environmental Requirements

• Limit temperature range
  • -60 … +100 °C
• Processing temperature
  • -35 … +60 °C

Material Data

• Clamping spring material
  • Chrome-nickel spring steel (CrNi)
• Color
  • Light gray
• Contact material
  • Electrolytic copper (ECu)
• Contact plating
  • Tin
• Fire load
  • 0.035 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyphthalamide (PPA GF)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 9.699 g

Mechanical Data

• Anti-rotation protection
  • Yes
• Design
  • With gripping plate
• Variable coding
  • No

Notes

• Safety information
  • The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Pcb Contact

• PCB contact
  • THT

Physical Data

• Depth
  • 40.4 mm / 1.591 inches
• Drilled hole diameter with tolerance
  • 1.6 (+0.1) mm
• Height
  • 13.4 mm / 0.528 inches
• Pin spacing
  • 5 mm / 0.197 inches
• Solder pin diameter
  • 1.4 mm
• Solder pin length
  • 3.6 mm
• Width
  • 40 mm / 1.575 inches

Plug-In Connection

• Connector (connection type)
  • For PCB
• Contact type (pluggable connector)
  • Female connector/socket
• Locking of plug-in connection
  • null
• Mating direction to the PCB
  • 0 °
• Mismating protection
  • No
• Plugging without loss of pin spacing
  • Yes

Ratings Per Iec/En

• Legend (ratings)
  • (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Nominal voltage (II/2)
  • 630 V
• Nominal voltage (III/3)
  • 250 V
• Rated current
  • 16 A
• Rated impulse voltage (III/2)
  • 4 kV
• Rated impulse voltage (III/3)
  • 4 kV
• Rated surge voltage (II/2)
  • 4 kV
• Rated voltage (III/2)
  • 320 V
• Ratings per
  • IEC/EN 60664-1

Ratings Per Ul 1059

• Approvals per
  • UL 1059
• Rated current UL (Use Group B)
  • 15 A
• Rated current UL (Use Group D)
  • 10 A
• Rated voltage UL (Use Group B)
  • 300 V
• Rated voltage UL (Use Group D)
  • 300 V

Specifications

• Product Group Code
  • 0026
