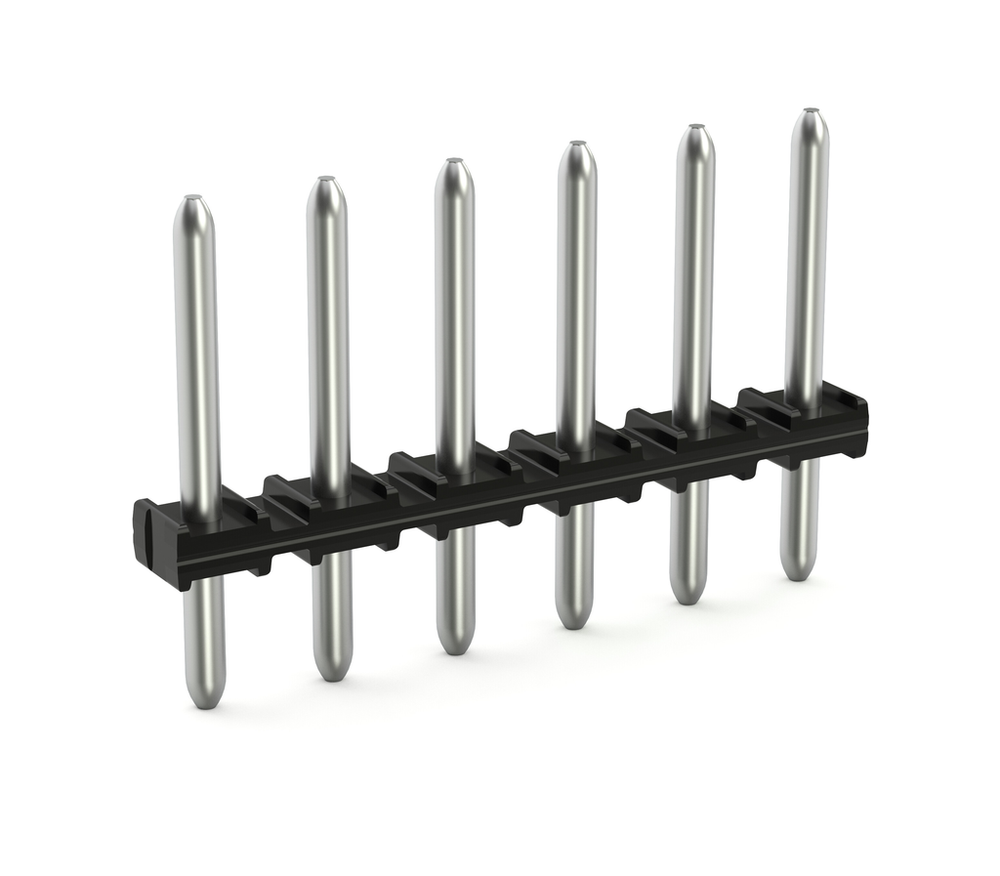

WAGO 2091-1703
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
THT male header; 1.0 mm Ø solder pin; straight; Pin spacing 3.5 mm; 3-pole; black
WAGO 2091-1703 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85369010000
- GTIN
- 4055143935012
- Packaging type
- Bag
Connection 1
- Pole number
- 3
Environmental Requirements
- Limit temperature range
- -60 … +100 °C
Material Data
- Color
- Black
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.000 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyphthalamide (PPA GF)
- Material group
- I
- Note (material data)
- Information on material specifications can be found here
- Weight
- 0.290 g
Mechanical Data
- Anti-rotation protection
- Yes
- Variable coding
- Yes
Notes
- Safety information
- The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Pcb Contact
- PCB contact
- THT
Physical Data
- Depth
- 2.5 mm / 0.098 inches
- Drilled hole diameter with tolerance
- 1.2 (+0.1) mm
- Height
- 12.9 mm / 0.508 inches
- Height from the surface
- 9.3 mm / 0.366 inches
- Pin spacing
- 3.5 mm / 0.138 inches
- Solder pin diameter
- 1 mm
- Solder pin length
- 3.6 mm
- Width
- 12.0 mm / 0.472 inches
Plug-In Connection
- Connector (connection type)
- For PCB
- Contact type (pluggable connector)
- Male connector/plug
- Locking of plug-in connection
- null
- Mating direction to the PCB
- 90 °
- Mismating protection
- No
- Plugging without loss of pin spacing
- Yes
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 320 V
- Nominal voltage (III/3)
- 160 V
- Rated current
- 10 A
- Rated impulse voltage (III/2)
- 2.5 kV
- Rated impulse voltage (III/3)
- 2.5 kV
- Rated surge voltage (II/2)
- 2.5 kV
- Rated voltage (III/2)
- 160 V
- Ratings per
- IEC/EN 60664-1
Specifications
- Product Group Code
- 0026
