WAGO 2091-1702/200-000/997-604

Commercial Data

• Country of origin
  • CN
• Customs tariff number
  • 85366990990
• GTIN
  • 4055144150391

Connection 1

• Pole number
  • 2

Environmental Requirements

• Limit temperature range
  • -60 … +100 °C

Material Data

• Color
  • Black
• Contact material
  • Electrolytic copper (ECu)
• Contact plating
  • Tin
• Fire load
  • 0.000 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyphthalamide (PPA GF)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 586.530 g
• Weight of insulation material
  • 0.02 g

Mechanical Data

• Anti-rotation protection
  • Yes
• Variable coding
  • Yes

Notes

• Safety information
  • The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Pcb Contact

• PCB contact
  • THR

Physical Data

• Pin spacing
  • 3.5 mm / 0.138 inches
• Plated through-hole diameter (THR)
  • 1.2 (+0.1) mm
• Reel diameter of tape-and-reel packaging
  • 380 mm
• Solder pin diameter
  • 1 mm
• Solder pin length
  • 2.4 mm
• Tape width
  • 24 mm

Plug-In Connection

• Connector (connection type)
  • For PCB
• Contact type (pluggable connector)
  • Male connector/plug
• Locking of plug-in connection
  • null
• Mismating protection
  • No
• Plugging without loss of pin spacing
  • Yes

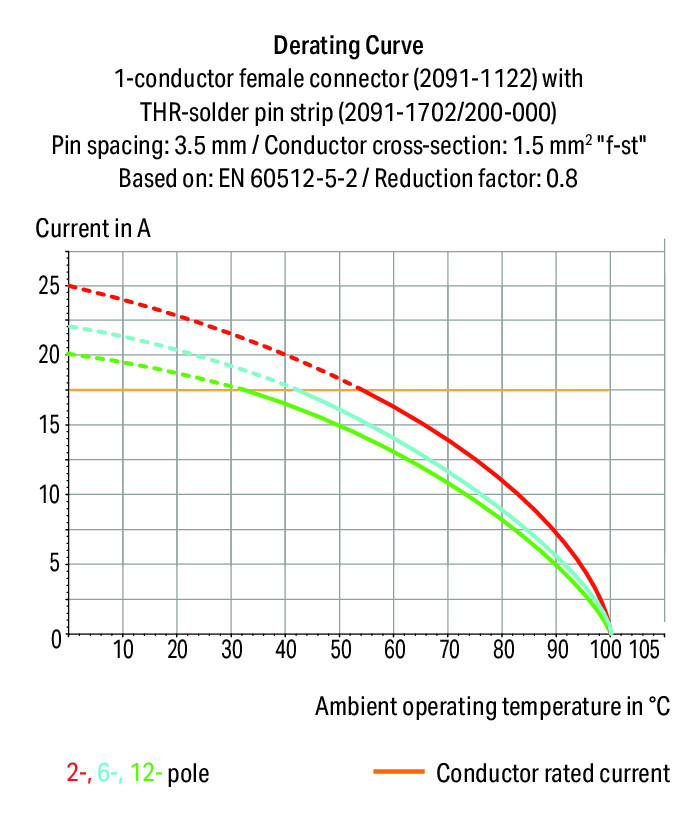

Ratings Per Iec/En

• Legend (ratings)
  • (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Nominal voltage (II/2)
  • 320 V
• Nominal voltage (III/3)
  • 160 V
• Rated current
  • 10 A
• Rated impulse voltage (III/2)
  • 2.5 kV
• Rated impulse voltage (III/3)
  • 2.5 kV
• Rated surge voltage (II/2)
  • 2.5 kV
• Rated voltage (III/2)
  • 160 V
• Ratings per
  • IEC/EN 60664-1

Specifications

• Product Group Code
  • 0026
