Description
Through-Board SMD PCB Terminal Block; Pin spacing 3 mm; 1-pole; PUSH WIRE®; in tape-and-reel packaging; Without housing; 0,75 mm²; silver-colored
WAGO 2075-381/997-404 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CH
- Customs tariff number
- 85369010000
- GTIN
- 4055143607636
- Packaging type
- Box
Connection 1
- Actuation type
- Push-in
- Conductor connection direction to PCB
- 90 °
- Connection technology
- PUSH WIRE®
- Pole number
- 1
- Solid conductor
- 0.34 … 0.75 mm² / 20 … 18 AWG
- Strip length
- 3.7 mm / 0.15 inches
Environmental Requirements
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Copper alloy
- Color
- Silver-colored
- Contact material
- Electrolytic copper (ECu)
- Contact plating
- Tin
- Fire load
- 0.000 MJ
- Flammability class per UL94
- V0
- Note (material data)
- Weight
- 0.160 g
Notes
- Note
- Terminal block without insulation housing!Protection against accidental contact must be provided at voltages higher than low voltages (e.g., SELV/PELV) for the relevant application.
Pcb Contact
- Number of solder pins per potential
- 2
- PCB contact
- SMD
- Solder pin arrangement
- In-line
Physical Data
- Depth
- 17.5 mm / 0.689 inches
- Height
- 3.9 mm / 0.154 inches

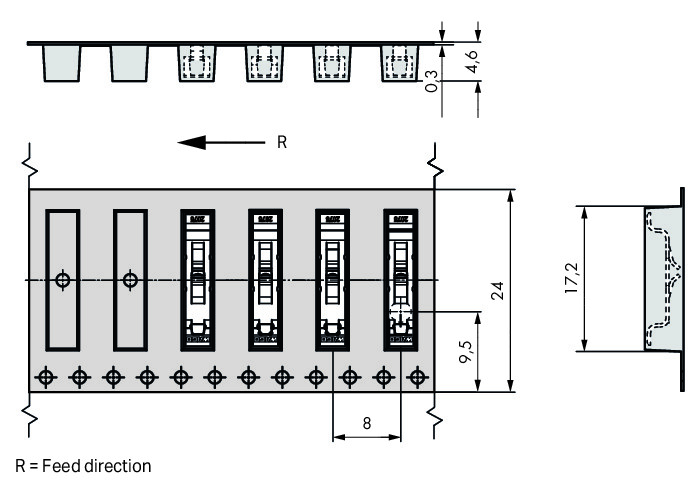

- Reel diameter of tape-and-reel packaging
- 330 mm
- Tape width
- 24 mm
- Width
- 3 mm / 0.118 inches
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 500 V
- Rated current
- 9 A
- Rated surge voltage (II/2)
- 4 kV
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1977
- Rated current UL 1977
- 9 A
- Rated voltage (UL 1977)
- 600 V
Specifications
- Product Group Code
- 0033
