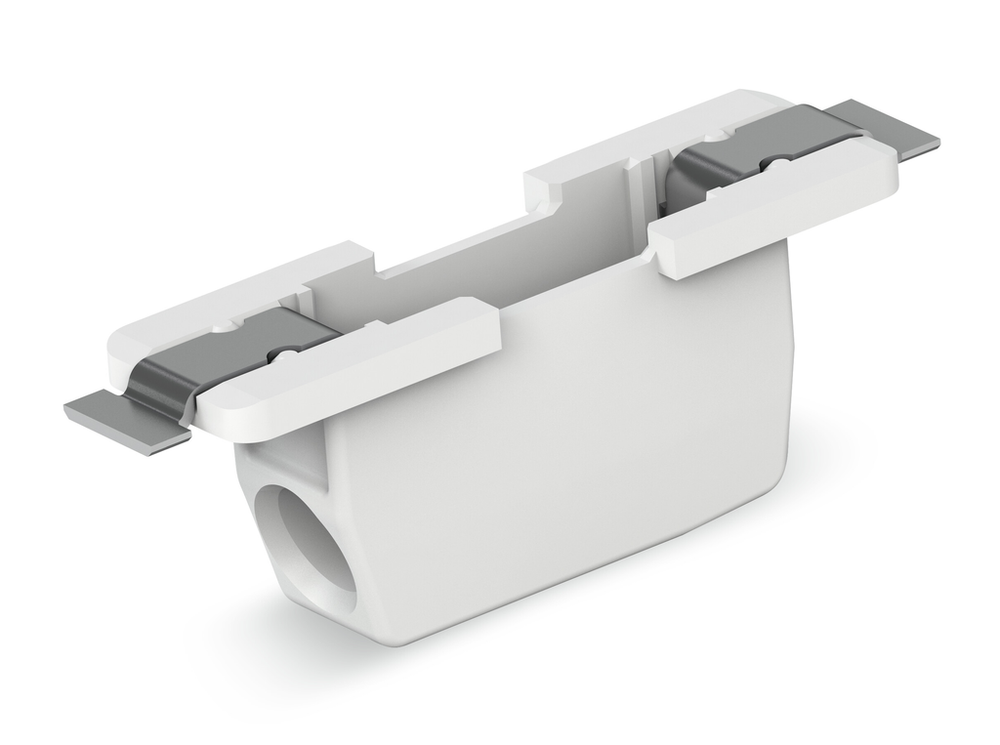

WAGO 2070-451/998-406

Commercial Data

• Country of origin
  • CH
• Customs tariff number
  • 85369010000
• GTIN
  • 4055143645188
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Conductor connection direction to PCB
  • 0 °
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.2 … 0.75 mm² / 24 … 18 AWG
• Pole number
  • 1
• Solid conductor
  • 0.2 … 0.75 mm² / 24 … 18 AWG
• Strip length
  • 8 … 10 mm / 0.31 … 0.39 inches

Environmental Requirements

• Limit temperature range
  • -60 … +105 °C

Material Data

• Color
  • White
• Contact material
  • Copper alloy
• Contact plating
  • Tin
• Fire load
  • 0.000 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyphthalamide (PPA GF)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 0.909 g

Mechanical Data

• Design
  • Without cover
• Mounting type
  • Through-board

Notes

• Note
  • Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Variants:
  • Reel diameter of tape-and-reel packaging: 381 mm || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Pcb Contact

• Number of solder pins per potential
  • 2
• PCB contact
  • SMD
• Solder pin arrangement
  • Over the entire terminal strip (in-line)

Physical Data

• Depth
  • 22.2 mm / 0.874 inches
• Height
  • 7.45 mm / 0.293 inches
• PCB thickness (max.)
  • 2.4 mm
• Pin spacing
  • 6.5 mm / 0.256 inches
• Reel diameter of tape-and-reel packaging
  • 330 mm
• Tape width
  • 44 mm
• Width
  • 5.3 mm / 0.209 inches

Ratings Per Iec/En

• Legend (ratings)
  • (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Nominal voltage (II/2)
  • 630 V
• Nominal voltage (III/3)
  • 320 V
• Rated current
  • 9 A
• Rated impulse voltage (III/2)
  • 4 kV
• Rated impulse voltage (III/3)
  • 4 kV
• Rated surge voltage (II/2)
  • 4 kV
• Rated voltage (III/2)
  • 320 V
• Ratings per
  • IEC/EN 60664-1

Ratings Per Iec/En 2

• Rated current 2
  • 9 A
• Rated surge voltage (II/2) 2
  • 4 kV
• Rated surge voltage (III/2) 2
  • 4 kV
• Rated surge voltage (III/3) 2
  • 4 kV
• Rated voltage (II/2) 2
  • 500 V
• Rated voltage (III/2) 2
  • 320 V
• Rated voltage (III/3) 2
  • 200 V
• Ratings per 2
  • IEC/EN 60664-1

Ratings Per Ul 1977

• Rated current UL 1977
  • 9 A
• Rated voltage (UL 1977)
  • 600 V

Specifications

• Product Group Code
  • 0033
