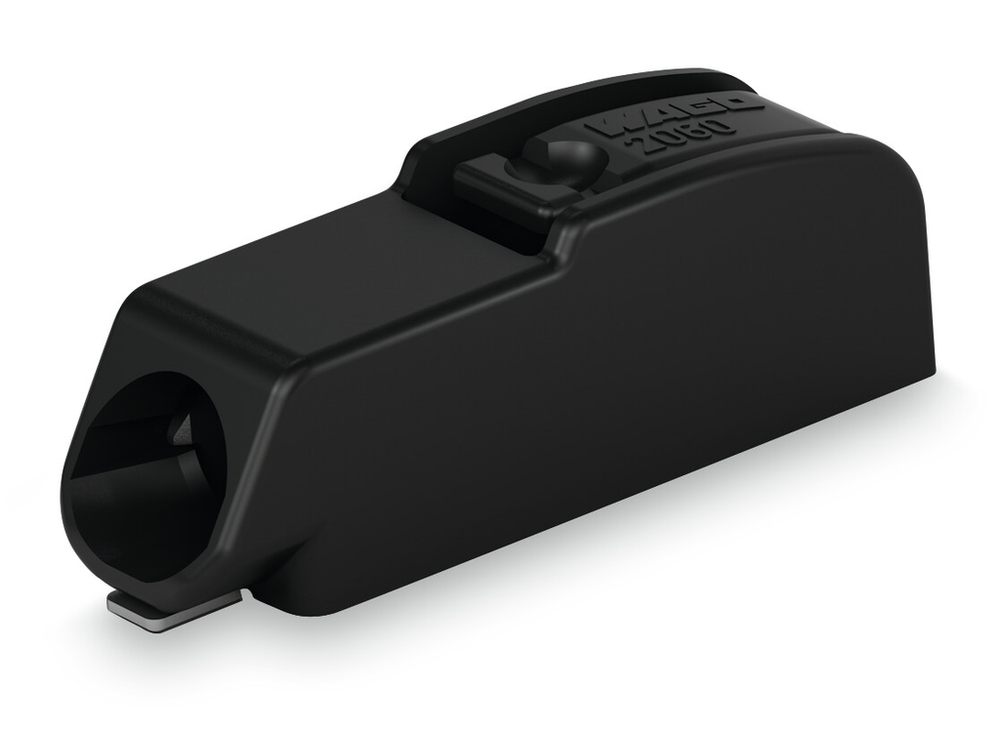

WAGO 2060-471/998-404
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SMD PCB terminal block; push-button; 0.75 mm²; Pin spacing 4 mm; 1-pole; Push-in CAGE CLAMP®; in tape-and-reel packaging; 0,75 mm²; black
WAGO 2060-471/998-404 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CH
- Customs tariff number
- 85369010000
- GTIN
- 4055143251198
- Packaging type
- Box
Connection 1
- Actuation type
- Push-button
- Conductor connection direction to PCB
- 0 °
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.2 … 0.75 mm² / 24 … 18 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.25 … 0.34 mm²
- Fine-stranded conductor; with uninsulated ferrule
- 0.25 … 0.34 mm²
- Pole number
- 1
- Solid conductor
- 0.2 … 0.75 mm² / 24 … 18 AWG
- Strip length
- 7 … 9 mm / 0.28 … 0.35 inches
Environmental Requirements
- Limit temperature range
- -60 … +105 °C
Material Data
- Clamping spring material
- Copper alloy
- Color
- Black
- Contact material
- Copper alloy
- Contact plating
- Tin
- Fire load
- 0.000 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyphthalamide (PPA GF)
- Material group
- I
- Note (material data)
- Weight
- 0.250 g
Notes
- Note
- Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
- Recommendation
- Recommendation for stencil:150 µm material thickness; Pattern layout identical to solder pad layout
Pcb Contact
- Number of solder pins per potential
- 2
- PCB contact
- SMD
- Solder pin arrangement
- Over the entire terminal strip (in-line)
Physical Data
- Depth
- 13.1 mm / 0.516 inches
- Height
- 4.5 mm / 0.177 inches
- Pin spacing
- 4 mm / 0.157 inches
- Reel diameter of tape-and-reel packaging
- 330 mm
- Tape width
- 24 mm
- Width
- 3.9 mm / 0.154 inches
Plug-In Connection
- Plugging without loss of pin spacing
- Yes
Ratings Per Iec/En
- Legend (ratings)
- (III / 2) ≙ Overvoltage category III / Pollution degree 2
- Nominal voltage (II/2)
- 320 V
- Nominal voltage (III/3)
- 63 V
- Rated current
- 9 A
- Rated impulse voltage (III/2)
- 2.5 kV
- Rated impulse voltage (III/3)
- 2.5 kV
- Rated surge voltage (II/2)
- 2.5 kV
- Rated voltage (III/2)
- 160 V
- Ratings per
- IEC/EN 60664-1
Ratings Per Ul 1977
- Rated current UL 1977
- 9 A
- Rated voltage (UL 1977)
- 600 V
Specifications
- Product Group Code
- 0033
