WAGO 2060-452/998-404

Commercial Data

• Country of origin
  • CH
• Customs tariff number
  • 85369010000
• GTIN
  • 4055143541244
• Packaging type
  • Box

Connection 1

• Actuation type
  • Push-button
• Conductor connection direction to PCB
  • 0 °
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.2 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.25 … 0.34 mm²
• Fine-stranded conductor; with uninsulated ferrule
  • 0.25 … 0.34 mm²
• Pole number
  • 2
• Solid conductor
  • 0.2 … 0.75 mm² / 24 … 18 AWG
• Strip length
  • 7 … 9 mm / 0.28 … 0.35 inches

Environmental Requirements

• Limit temperature range
  • -60 … +105 °C

Material Data

• Clamping spring material
  • Copper alloy
• Color
  • White
• Contact material
  • Copper alloy
• Contact plating
  • Tin
• Fire load
  • 0.000 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyphthalamide (PPA GF)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 0.518 g

Notes

• Note
  • Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Recommendation
  • Recommendation for stencil:150 µm material thickness; Pattern layout identical to solder pad layout

Pcb Contact

• Number of solder pins per potential
  • 2
• PCB contact
  • SMD
• Solder pin arrangement
  • Over the entire terminal strip (in-line)

Physical Data

• Depth
  • 13.1 mm / 0.516 inches
• Height
  • 4.5 mm / 0.177 inches
• Pin spacing
  • 4 mm / 0.157 inches
• Reel diameter of tape-and-reel packaging
  • 330 mm
• Tape width
  • 24 mm
• Width
  • 7.9 mm / 0.311 inches

Plug-In Connection

• Plugging without loss of pin spacing
  • Yes

Ratings Per Iec/En

• Legend (ratings)
  • (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Nominal voltage (II/2)
  • 320 V
• Nominal voltage (III/3)
  • 63 V

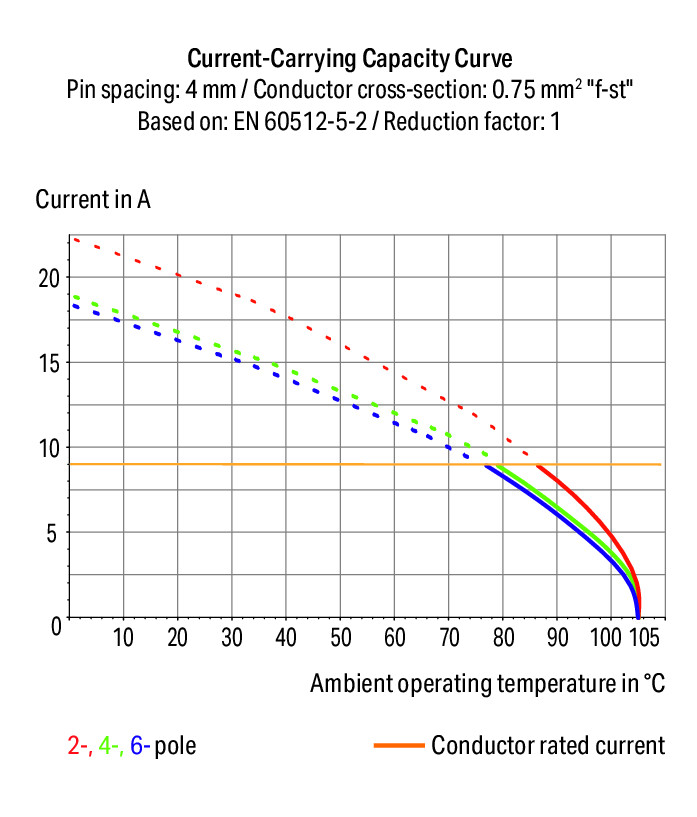

• Rated current
  • 9 A
• Rated impulse voltage (III/2)
  • 2.5 kV
• Rated impulse voltage (III/3)
  • 2.5 kV
• Rated surge voltage (II/2)
  • 2.5 kV
• Rated voltage (III/2)
  • 160 V
• Ratings per
  • IEC/EN 60664-1

Ratings Per Ul 1977

• Rated current UL 1977
  • 9 A
• Rated voltage (UL 1977)
  • 320 V

Specifications

• Product Group Code
  • 0033
