WAGO 206-1216
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

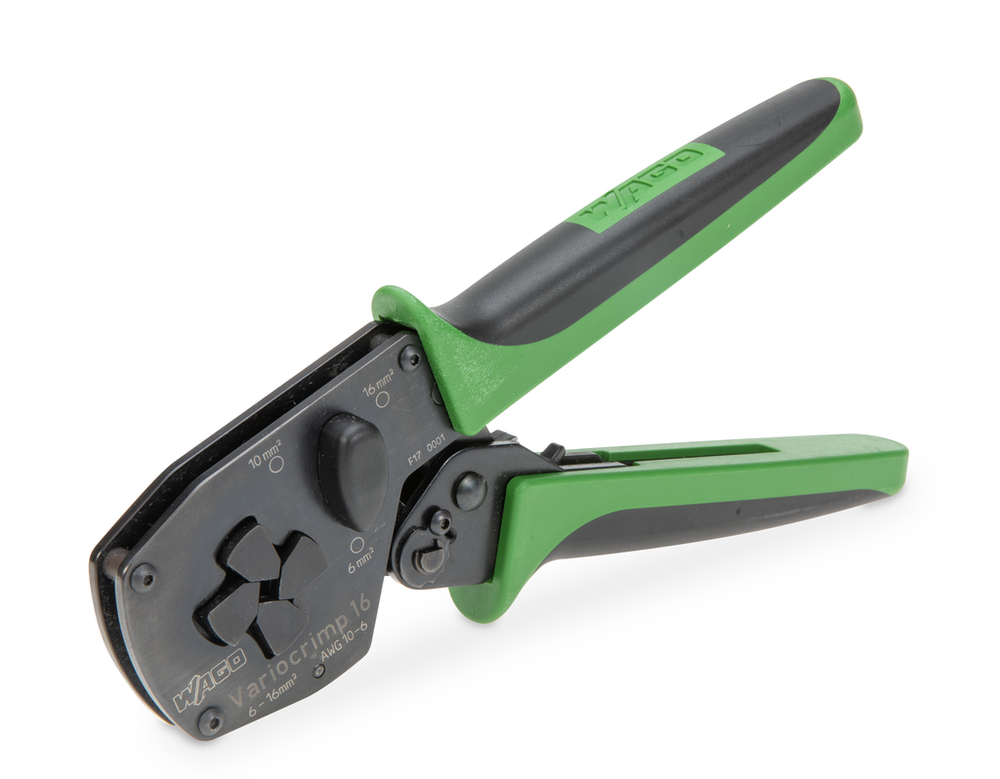

Variocrimp 16 crimping tool; for insulated and uninsulated ferrules; 10 … 6 AWG
WAGO 206-1216 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 82032000000
- GTIN
- 4055143885461
- Packaging type
- Box
Material Data
- Fire load
- 0.000 MJ
- Weight
- 600.000 g
Notes
- Note
- Application NotesSelect the wire gauge on “Variocrimp 16” before crimping.Only one crimping station is needed to handle the specified conductor range.Uniform, compact crimping all four sides for high conductor retention.No need to center the ferrules into the terminals.Crimping can be performed from either side (for left- or right-handed users).Built-in ratchet mechanism ensures gas-tight crimp connection.Crimping tools open automatically after crimping operation is complete.Ergonomically designed handles.What is a “gas-tight” connection?In a gas-tight connection, the conductor and the ferrule are compressed, eliminating all spaces. Under normal atmospheric conditions, neither a liquid nor gaseous medium can penetrate the crimped connection.Oxidation between crimped single conductors is prevented, virtually eliminating the possibility of any increase in the crimped connection’s resistance. In some exceptional cases, minute, isolated spaces may be present. However, these instances can be considered as closed off due to the twisted conductor.Inadequate crimping can allow the conductor to be pulled out of the connection. Hollow spaces also remain, permitting oxidation formationand an increase in contact resistance.Elevated resistance is detrimental for both signal transmission (signal flow is damped) and power transmission, resulting in power loss and contact heating (risk of fire).Crimping tools with built-in ratchets are recommended (e.g., WAGO Crimping Tools. These tools open automatically after the crimping operation is complete. Space-saving crimping from all four sides is ideal for spring clamp termination.Ferruled conductor cross-sections specified for WAGO products are based on this crimping method.
Specifications
- Product Group Code
- 0014
Technical Data
- Main product function
- Crimping tool
