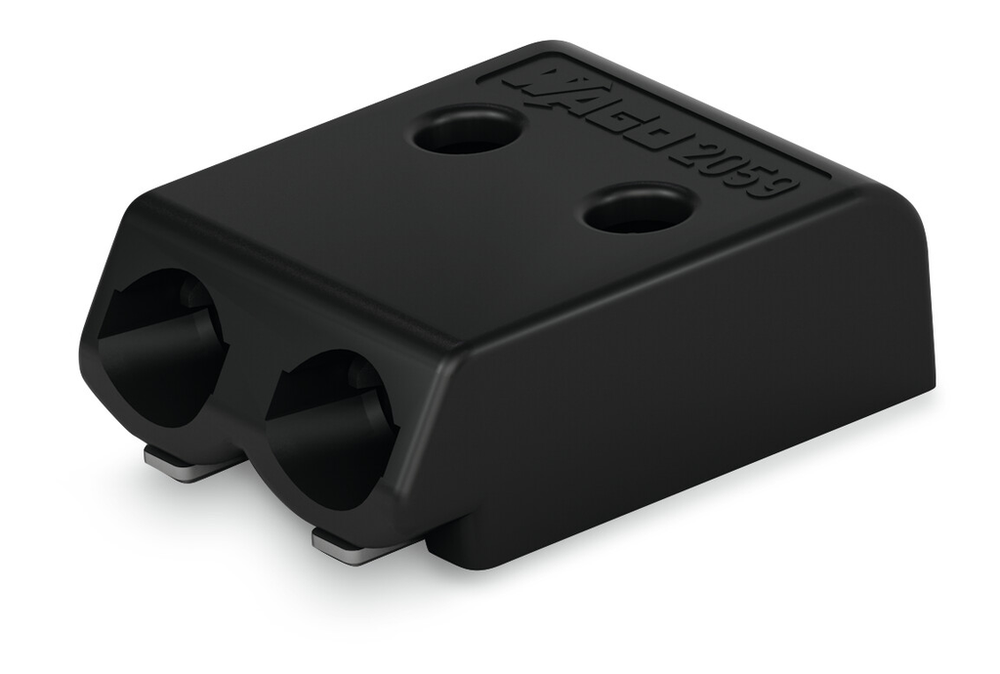

WAGO 2059-322/998-403

Commercial Data

• Country of origin
  • CH
• Customs tariff number
  • 85369010000
• GTIN
  • 4055143476560
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Conductor connection direction to PCB
  • 0 °
• Connection technology
  • PUSH WIRE®
• Note (conductor cross-section)
  • For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using an operating tool.
• Pole number
  • 2
• Solid conductor
  • 0.14 … 0.34 mm² / 26 … 22 AWG
• Strip length
  • 4 … 5.5 mm / 0.16 … 0.22 inches

Connection 2

• Note (conductor cross-section) 2
  • No reconnection of smaller conductor cross-sections (0.5 mm²/20 AWG)
• Solid conductor 2
  • 0.5 mm² / 20 AWG
• Strip length 2
  • 6 … 7.5 mm / 0.24 … 0.3 inches

Environmental Requirements

• Limit temperature range
  • -60 … +105 °C

Material Data

• Color
  • Black
• Contact material
  • Copper alloy
• Contact plating
  • Tin
• Fire load
  • 0.002 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyphthalamide (PPA GF)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 0.168 g

Notes

• Note
  • Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. || Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.
• Recommendation
  • Recommendation for stencil:150 µm material thickness; Pattern layout identical to solder pad layout

Pcb Contact

• Number of solder pins per potential
  • 2
• PCB contact
  • SMD
• Solder pin arrangement
  • Over the entire terminal strip (in-line)

Physical Data

• Depth
  • 7.9 mm / 0.311 inches
• Height
  • 2.7 mm / 0.106 inches
• Pin spacing
  • 3 mm / 0.118 inches
• Reel diameter of tape-and-reel packaging
  • 330 mm
• Tape width
  • 16 mm
• Width
  • 5.9 mm / 0.232 inches

Plug-In Connection

• Plugging without loss of pin spacing
  • Yes

Ratings Per Iec/En

• Legend (ratings)
  • (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Nominal voltage (II/2)
  • 320 V
• Nominal voltage (III/3)
  • 63 V
• Rated current
  • 3 A
• Rated impulse voltage (III/2)
  • 2.5 kV
• Rated impulse voltage (III/3)
  • 2.5 kV
• Rated surge voltage (II/2)
  • 2.5 kV
• Rated voltage (III/2)
  • 160 V
• Ratings per
  • IEC/EN 60664-1

Ratings Per Ul 1977

• Rated current UL 1977
  • 3 A
• Rated voltage (UL 1977)
  • 250 V

Specifications

• Product Group Code
  • 0033
