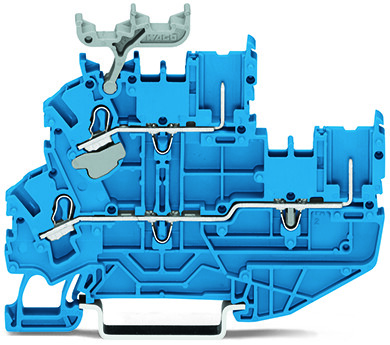

WAGO 2022-2204
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; 2.5 mm²; N/N; without marker carrier; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; blue
WAGO 2022-2204 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85366990990
- GTIN
- 4055143265775
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with ferrule; push-in termination
- 1 … 2.5 mm² / 18 … 14 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.25 … 2.5 mm² / 22 … 14 AWG
- Nominal cross-section
- 2.5 mm²
- Note (conductor cross-section)
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Solid conductor
- 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination
- 0.75 … 4 mm² / 18 … 12 AWG
- Strip length
- 10 … 12 mm / 0.39 … 0.47 inches
- Wiring direction
- Front-entry wiring
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Processing temperature
- -35 … +85 °C
Material Data
- Color
- Blue
- Fire load
- 0.247 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 11.490 g
Mechanical Data
- Design
- Horizontal type
- Marking level
- Side marking
- Mounting type
- DIN-35 rail
- Potential marking
- N/N
Physical Data
- Depth from upper-edge of DIN-rail
- 51.3 mm / 2.02 inches
- Height
- 80.1 mm / 3.154 inches
- Width
- 5.2 mm / 0.205 inches
Power Loss
- Power loss, per pole (potential)
- 0.7661 W
- Rated current IN for specified power loss
- 24 A
- Resistance value for specified, current-dependent power loss
- 0.00133 Ω
Ratings Per Csa
- Approvals per
- CSA 22.2 No 158
- Rated current CSA (Use Group C)
- 20 A
- Rated voltage CSA (Use Group C)
- 600 V
Ratings Per Iec/En
- Current at conductor cross-section (max.) mm²
- 28 A
- Legend (ratings)
- (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Nominal voltage (III/3)
- 690 V
- Rated current
- 24 A
- Rated impulse voltage (III/3)
- 6 kV
- Ratings per
- IEC/EN 60947-7-1
Ratings Per Ul 1059
- Approvals per
- UL 1059
- Rated current UL (Use Group B)
- 20 A
- Rated current UL (Use Group C)
- 20 A
- Rated voltage UL (Use Group B)
- 600 V
- Rated voltage UL (Use Group C)
- 600 V
Specifications
- Product Group Code
- 0018
