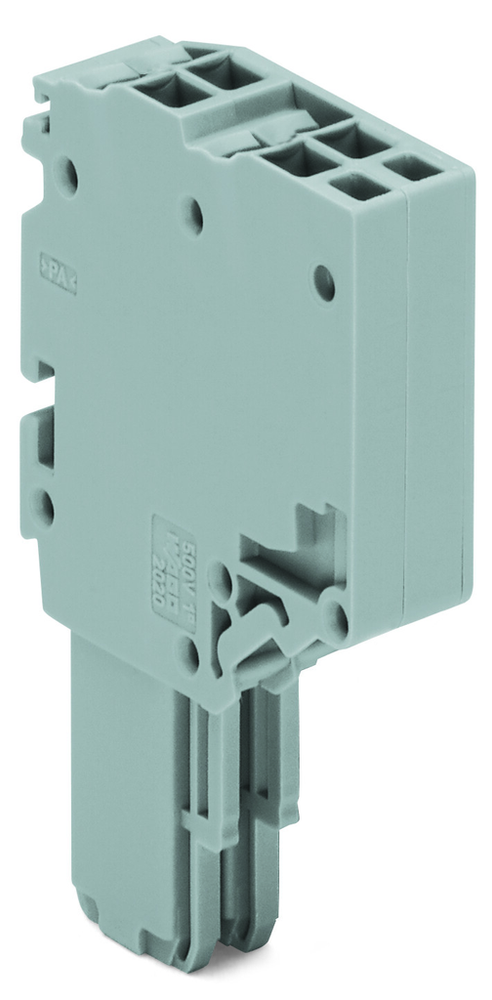

WAGO 2020-202

Commercial Data

• GTIN
  • 4050821245209
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Connectable conductor materials
  • Copper
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.14 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination
  • 0.5 … 0.75 mm² / 20 … 18 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.14 … 0.75 mm² / 24 … 18 AWG
• Nominal cross-section
  • 1 mm²
• Note (conductor cross-section)
  • Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Pole number
  • 2
• Solid conductor
  • 0.14 … 1.5 mm² / 24 … 16 AWG
• Solid conductor; push-in termination
  • 0.5 … 1.5 mm² / 20 … 16 AWG
• Strip length
  • 9 … 11 mm / 0.35 … 0.43 inches
• Wiring direction
  • Front-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

Material Data

• Color
  • Gray
• Fire load
  • 0.104 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 5.960 g

Mechanical Data

• Anti-rotation protection
  • Yes
• Marking level
  • Side marking
• Variable coding
  • Yes

Notes

• Safety information
  • According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
• Safety information 2
  • Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.

Physical Data

• Depth
  • 25 mm / 0.984 inches
• Height
  • 40.5 mm / 1.594 inches
• Module width
  • 3.5 mm / 0.138 inches
• Width
  • 7.7 mm / 0.303 inches

Plug-In Connection

• Connector (connection type)
  • For conductor
• Contact type (pluggable connector)
  • Female connector/socket
• Mismating protection
  • No
• Plugging without loss of pin spacing
  • No

Ratings Per Csa

• Approvals per
  • CSA 22.2 No 158
• Rated current CSA (Use Group B)
  • 10 A
• Rated current CSA (Use Group C)
  • 10 A
• Rated current CSA (Use Group D)
  • 10 A
• Rated voltage CSA (Use Group B)
  • 300 V
• Rated voltage CSA (Use Group C)
  • 300 V
• Rated voltage CSA (Use Group D)
  • 300 V

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 500 V
• Rated current
  • 13.5 A
• Rated impulse voltage (III/3)
  • 6 kV
• Ratings per
  • IEC/EN 61984

Ratings Per Ul 1059

• Approvals per
  • UL 1059
• Rated current UL (Use Group B)
  • 15 A
• Rated current UL (Use Group C)
  • 15 A
• Rated current UL (Use Group D)
  • 15 A
• Rated voltage UL (Use Group B)
  • 300 V
• Rated voltage UL (Use Group C)
  • 300 V
• Rated voltage UL (Use Group D)
  • 300 V

Specifications

• Product Group Code
  • 0018
