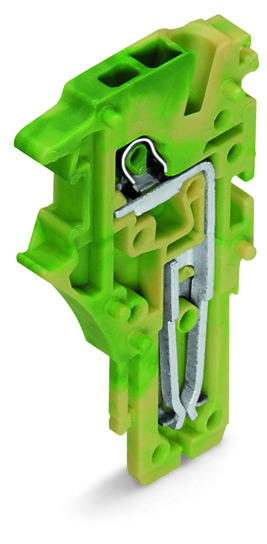

WAGO 2020-187
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
End module for 1-conductor female connector; Push-in CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 1-pole; 1,50 mm²; green-yellow
WAGO 2020-187 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- CN
- Customs tariff number
- 85366990990
- GTIN
- 4050821245186
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.14 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with ferrule; push-in termination
- 0.5 … 0.75 mm² / 20 … 18 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.14 … 0.75 mm² / 24 … 18 AWG
- Nominal cross-section
- 1 mm²
- Note (conductor cross-section)
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Pole number
- 1
- Solid conductor
- 0.14 … 1.5 mm² / 24 … 16 AWG
- Solid conductor; push-in termination
- 0.5 … 1.5 mm² / 20 … 16 AWG
- Strip length
- 9 … 11 mm / 0.35 … 0.43 inches
- Wiring direction
- Front-entry wiring
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Processing temperature
- -35 … +85 °C
Material Data
- Color
- Green-yellow
- Fire load
- 0.039 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 2.220 g
Mechanical Data
- Anti-rotation protection
- Yes
- Marking level
- Side marking
- Variable coding
- Yes
Notes
- Safety information
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- Safety information 2
- Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.
Physical Data
- Depth
- 22.4 mm / 0.882 inches
- Height
- 40.5 mm / 1.594 inches
- Width
- 3.5 mm / 0.138 inches
Plug-In Connection
- Connector (connection type)
- For conductor
- Contact type (pluggable connector)
- Female connector/socket
- Mismating protection
- No
- Plugging without loss of pin spacing
- Yes
Ratings Per Iec/En
- Ratings per
- IEC/EN 61984
Specifications
- Product Group Code
- 0018
