Description

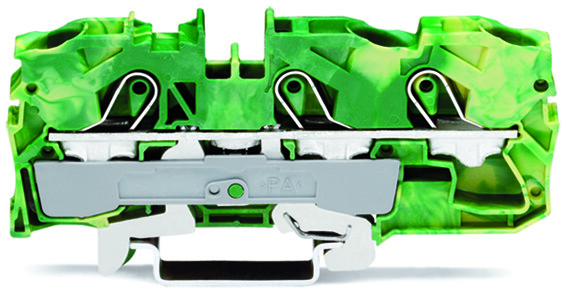

TOPJOB®S ground terminal block; rail mount; 3-conductor; 10 mm wide; green-yellow
WAGO 2010-1307 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- DE
- Customs tariff number
- 85369010000
- GTIN
- 4017332076340
- Packaging type
- Box
Connection 1
- Actuation type
- Operating tool
- Connectable conductor materials
- Copper
- Connection technology
- Push-in CAGE CLAMP®
- Fine-stranded conductor
- 0.5 … 16 mm² / 20 … 6 AWG
- Fine-stranded conductor; with ferrule; push-in termination
- 4 … 10 mm² / 12 … 8 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.5 … 10 mm² / 20 … 8 AWG
- Nominal cross-section
- 10 mm²
- Note (conductor cross-section)
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Solid conductor
- 0.5 … 16 mm² / 20 … 6 AWG
- Solid conductor; push-in termination
- 4 … 16 mm² / 14 … 6 AWG
- Strip length
- 17 … 19 mm / 0.67 … 0.75 inches
- Wiring direction
- Front-entry wiring
Environmental Requirements
- Continuous operating temperature
- -60 … +105 °C
- Processing temperature
- -35 … +85 °C
Ex Information
- Reference hazardous areas
- See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Material Data
- Color
- Green-yellow
- Fire load
- 0.377 MJ
- Flammability class per UL94
- V0
- Insulation material
- Polyamide (PA66)
- Material group
- I
- Note (material data)
- Weight
- 35.634 g
Mechanical Data
- Marking level
- Center/side marking
- Mounting type
- DIN-35 rail
Physical Data
- Depth from upper-edge of DIN-rail
- 36.9 mm / 1.453 inches
- Height
- 89 mm / 3.504 inches
- Width
- 10 mm / 0.394 inches
Ratings Per Iec/En
- Ratings per
- IEC/EN 60947-7-2
Specifications
- Product Group Code
- 0022
