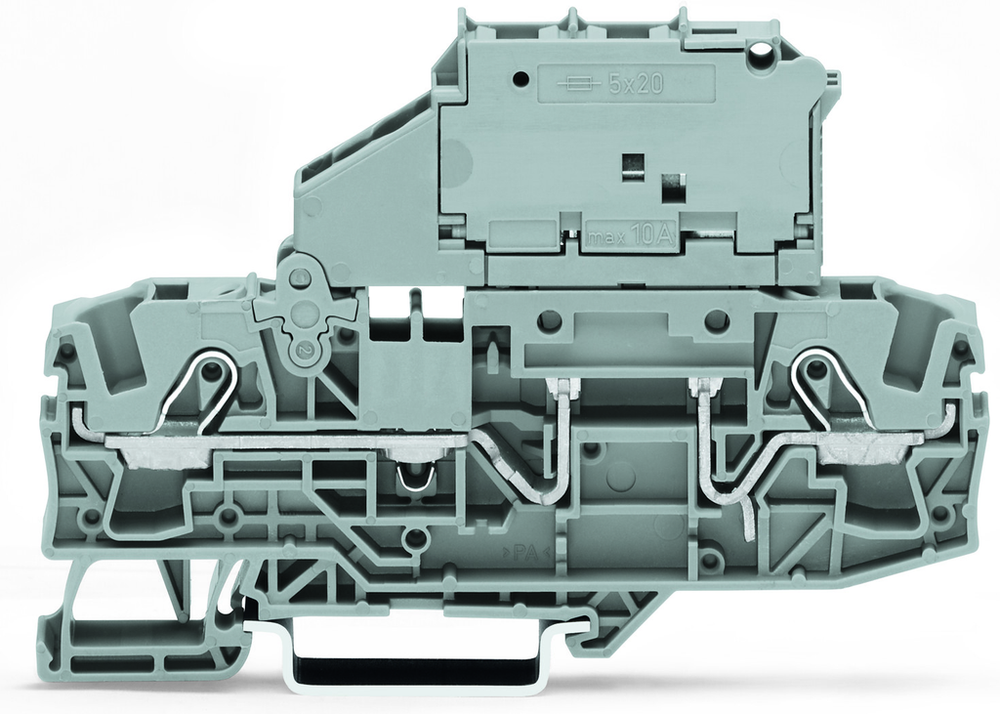

WAGO 2006-1611

Commercial Data

• Country of origin
  • CN
• Customs tariff number
  • 85369095000
• GTIN
  • 4045454821166
• Packaging type
  • Box

Connection 1

• Actuation type
  • Operating tool
• Connectable conductor materials
  • Copper
• Connection technology
  • Push-in CAGE CLAMP®
• Fine-stranded conductor
  • 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor; with ferrule; push-in termination
  • 2.5 … 6 mm² / 16 … 10 AWG
• Fine-stranded conductor; with insulated ferrule
  • 0.5 … 6 mm² / 20 … 10 AWG
• Nominal cross-section
  • 6 mm²
• Note (conductor cross-section)
  • Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Solid conductor
  • 0.5 … 10 mm² / 20 … 8 AWG
• Solid conductor; push-in termination
  • 2.5 … 10 mm² / 14 … 8 AWG
• Strip length
  • 13 … 15 mm / 0.51 … 0.59 inches
• Wiring direction
  • Front-entry wiring

Environmental Requirements

• Continuous operating temperature
  • -60 … +105 °C
• Processing temperature
  • -35 … +85 °C

General

• Fuse receptacle
  • Pivoting
• Fuse type
  • Cylindrical fuse; 5 x 20 mm

Material Data

• Color
  • Gray
• Fire load
  • 0.460 MJ
• Flammability class per UL94
  • V0
• Insulation material
  • Polyamide (PA66)
• Material group
  • I
• Note (material data)
  • Information on material specifications can be found here
• Weight
  • 24.950 g

Mechanical Data

• Marking level
  • Center/side marking
• Mounting type
  • DIN-35 rail

Physical Data

• Depth from upper-edge of DIN-rail
  • 59 mm / 2.323 inches
• Height
  • 96.3 mm / 3.791 inches
• Width
  • 7.5 mm / 0.295 inches

Power Loss

• Power loss (max.) Pl (max.) (note)
  • When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
• Power loss Pl max. overload and short-circuit protection (group arrangement)
  • 1.6 W
• Power loss Pl max. overload and short-circuit protection (individual arrangement)
  • 1.6 W
• Power loss Pl max. short-circuit protection (group arrangement)
  • 2.5 W
• Power loss Pl max. short-circuit protection (individual arrangement)
  • 2.5 W

Ratings Per Csa

• Approvals per
  • CSA 22.2 No 158
• Rated current CSA (Use Group B)
  • 15 A
• Rated current CSA (Use Group C)
  • 15 A
• Rated voltage CSA (Use Group B)
  • 600 V
• Rated voltage CSA (Use Group C)
  • 600 V

Ratings Per Iec/En

• Legend (ratings)
  • (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Nominal voltage (III/3)
  • 800 V
• Operation status indicator
  • null
• Rated current
  • 10 A
• Rated impulse voltage (III/3)
  • 8 kV
• Ratings (note)
  • Electrical ratings are given by the fuse.
• Ratings per
  • IEC/EN 60947-7-3

Ratings Per Ul 1059

• Approvals per
  • UL 1059
• Rated current UL (Use Group B)
  • 15 A
• Rated current UL (Use Group C)
  • 15 A
• Rated voltage UL (Use Group B)
  • 600 V
• Rated voltage UL (Use Group C)
  • 600 V

Specifications

• Product Group Code
  • 0022
